Same model may have multiple batches, images only for reference.

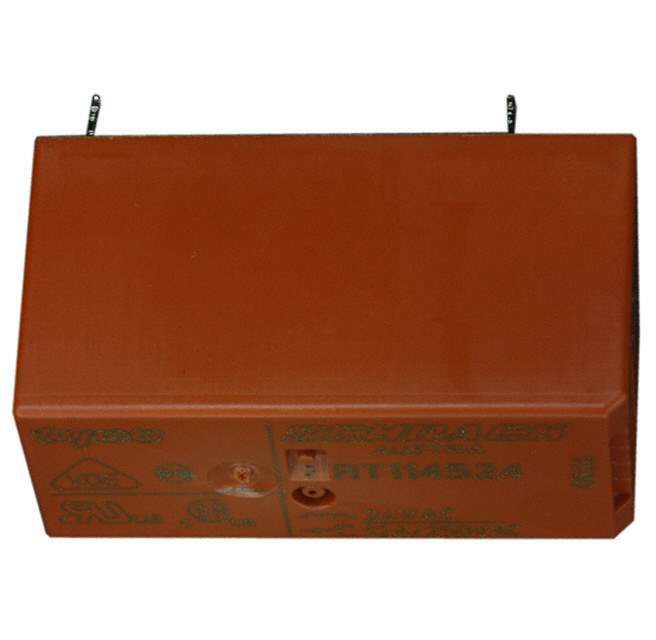

RT114524 Real Image
Same model may have multiple batches, images only for reference.

RT114524

Part No RT114524
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 12A 24V
Datasheet
RT114524 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Voltage 24VAC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 18 VAC
Turn Off Voltage (Min) 3.6 VAC
Operate Time 8ms
Release Time 6ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 0.76 VA
Coil Resistance 350 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 046405-RT114524
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RT114524 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays is a general-purpose relay that features a sealed flux protection and insulation class F.

  • Contact Form: SPDT (1 Form C)
  • Coil Voltage: 24VAC
  • Coil Resistance: 350 Ohms
  • Operate Time: 8ms
  • Release Time: 6ms
  • Switching Voltage: 400VAC maximum
  • Contact Rating: 12A
  • Turn On Voltage (max): 18VAC
  • Turn Off Voltage (min): 3.6VAC
  • Mounting: Through hole
  • Coil Power: 0.76VA
  • Temperature Range: -40°C to 70°C
