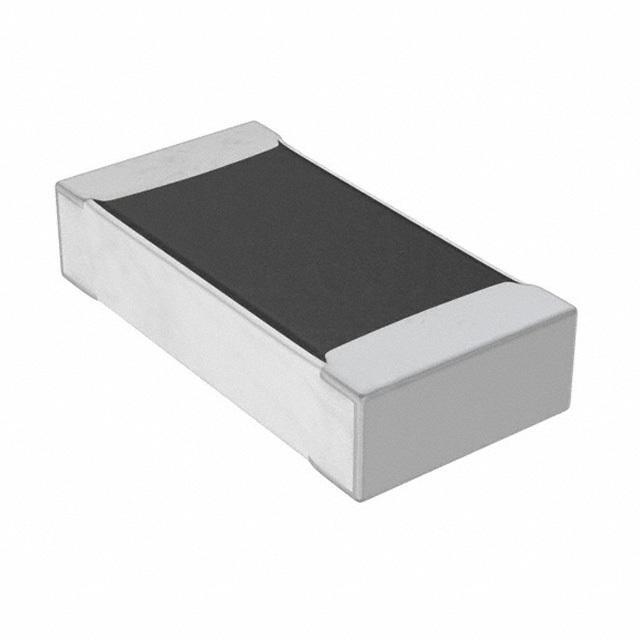

Same model may have multiple batches, images only for reference.
LRC-LRF1206LF-01-R025F TT Electronics
Same model may have multiple batches, images only for reference.

LRC-LRF1206LF-01-R025F

Part No LRC-LRF1206LF-01-R025F
Manufacturer TT Electronics
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.025 OHM 1% 1/2W 1206 / Res Thick Film 1206 0.025 Ohm 1% 0.5W(1/2W) ±200ppm/°C Pad SMD Automotive T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer TT Electronics/IRC
Series LRF
Packaging Reel package
Resistance (Ohms) 0.025
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient 200ppm/°C
Operating Temperature Range -55°C ~ 150°C
Package 1206 (3216 Metric)
Manufacturer Package 1206
Dimension 0.126" L x 0.064" W (3.20mm x 1.63mm)
Height - Seated (Maximum) 0.031" (0.80mm)
Number of Terminations 2
Win Source Part Number 780082-LRC-LRF1206LF-01-R025F
Popularity Medium
Supply and Demand Status Limited
Family Name LR
Introduction Date December 01, 2015
ECCN EAR99
Country of Origin Mexico, United Kingdom, United States of America
Halogen Free Compliant
Estimated EOL Date 2034
Ultra Librarian 3D Model Ultra Librarian LRC-LRF1206LF-01-R025F CAD Model

Description

The TT Electronics/IRC LRF series resistor is a thick film composition resistor.

  • Power Rating: 0.5W or 1/2W
  • Resistance: 0.025 ohms
  • Tolerance: ±1%
  • Temperature Coefficient: 200ppm/°C
  • Package: 1206
  • Terminations: 2
  • Operating Temperature Range: -55°C to 150°C
  • Dimensions: 0.126" L x 0.064" W (3.20mm x 1.63mm)
  • Seated Height: 0.031" (0.80mm)
  • Estimated EOL Date: 2034
