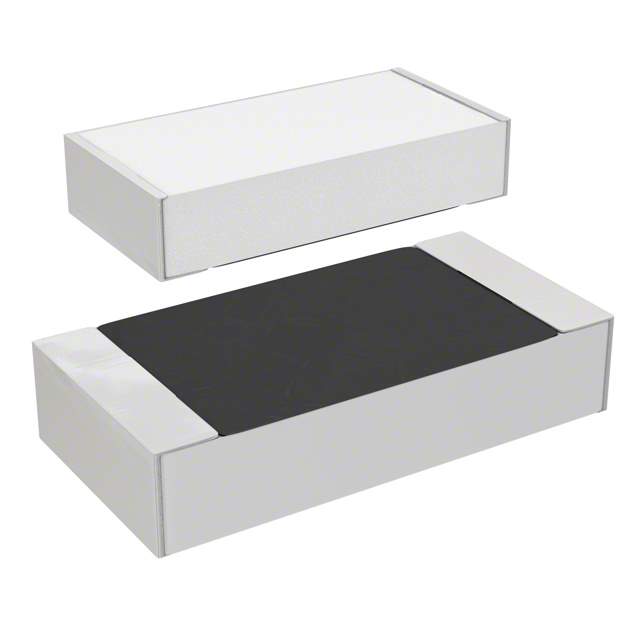

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series HCJ
Package Tape & Reel
Resistance 0 Ohms
Tolerance Jumper
Composition Metal Foil
Features Automotive AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.122" L x 0.061" W (3.10mm x 1.55mm)
Height - Seated (Max) 0.031" (0.80mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1340214-HCJ1206ZT0R00
Ultra Librarian 3D Model Ultra Librarian HCJ1206ZT0R00 CAD Model

Description

The Stackpole Electronics Inc HCJ series chip resistor is a high-quality surface mount component designed for automotive applications.

  • Resistance: 0 Ohms
  • Tolerance: jumper
  • Package: 1206 (3216 Metric)
  • Material: metal foil
  • Terminations: two
  • Temperature Range: -55°C to 155°C
  • AEC-Q200: rated
  • Standard Package: 5,000
  • Failure Rate: not specified
  • Height: 0.031" (0.80mm) when seated
