Same model may have multiple batches, images only for reference.

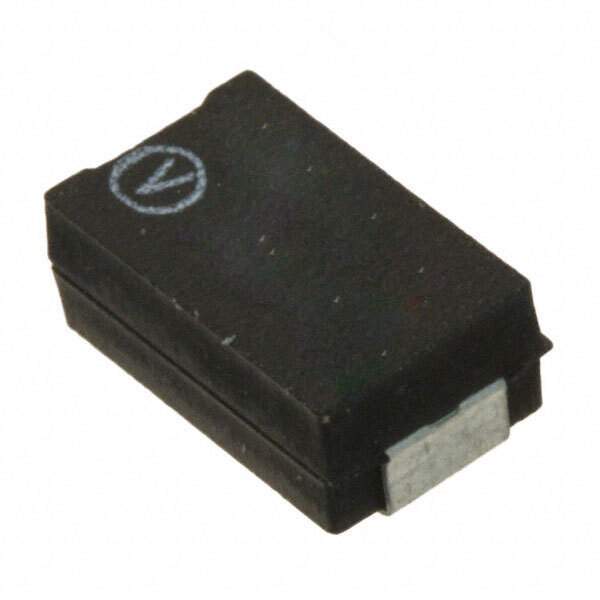

Y1169104R000T9R Real Image
Same model may have multiple batches, images only for reference.

Y1169104R000T9R

Part No Y1169104R000T9R
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 104OHM 0.01% 0.6W J LEAD / 104 Ohms ±0.01% 0.6W Chip Resistor 3017 J-Lead Moisture Resistant, Non-Inductive, Pulse Withstanding Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series SMR3D
Package Tape & Reel
Resistance 104 Ohms
Tolerance ±0.01%
Power (Watts) 0.6W
Composition Metal Foil
Features Moisture Resistant, Non-Inductive, Pulse Withstanding
Temperature Coefficient ±2ppm/°C
Temperature Range - Operating -55°C ~ 175°C
Package / Case 3017 J-Lead
Supplier Device Package SMD
Size / Dimension 0.287" L x 0.170" W (7.29mm x 4.32mm)
Height - Seated (Max) 0.122" (3.10mm)
Number of Terminations 2
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1349933-Y1169104R000T9R
Ultra Librarian 3D Model Ultra Librarian Y1169104R000T9R CAD Model

Description

The SMR3D series chip resistor by Vishay Foil Resistors (Division of Vishay Precision Group) is a high-quality product with moisture-resistant, non-inductive, and pulse-withstanding features.

  • Features: Moisture-Resistant, Non-Inductive, Pulse-withstanding
  • Tolerance: ±0.01%
  • Temperature Coefficient: ±2ppm/°C
  • Resistance: 104 Ohms
  • Power: 0.6W
  • Package: 3017 J-Lead
  • Packaging: Tape and Reel
  • Win Source Part Number: 1349933-Y1169104R000T9R
