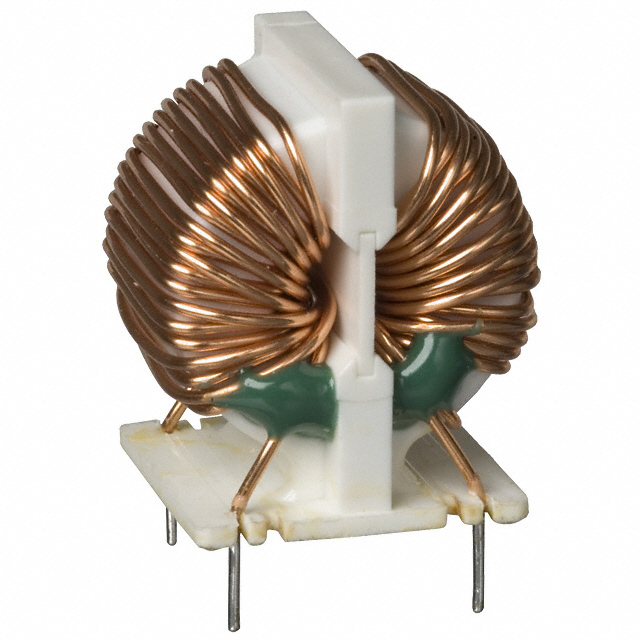

RB6122-16-1M0 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

RB6122-16-1M0

Part No RB6122-16-1M0
Manufacturer TE Connectivity
Catalog Common Mode Chokes
Description CMC 1MH 16A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 400 Hz
Current Rating (Max) 16A
DC Resistance (DCR) (Max) 4.8mOhm (Typ)
Voltage Rating - DC 1000V (1kV)
Voltage Rating - AC 600V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 2.098" L x 2.020" W (53.29mm x 51.31mm)
Height (Max) 1.634" (41.50mm)
Case / Package Horizontal, 4 PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1530561-RB6122-16-1M0
Ultra Librarian 3D Model Ultra Librarian RB6122-16-1M0 CAD Model
