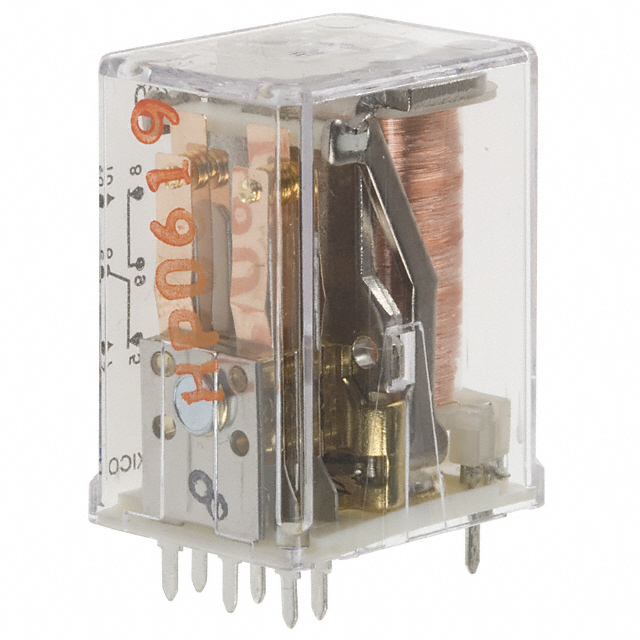

Same model may have multiple batches, images only for reference.
R10-E1X4-V15.0K TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

R10-E1X4-V15.0K

Part No R10-E1X4-V15.0K
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 5A 115V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Not For New Designs
Mounting Type Socketable
Coil Voltage 115VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5 A
Switching Voltage 120VAC - Nom
Coil Current 7.7 mA
Coil Type Non Latching
Termination Style Plug In
Must Operate Voltage 86 VDC
Temperature Range - Operating -55°C ~ 75°C
Contact Material Silver Cadmium Oxide (AgCdO)
Approval Agency CSA, UR
Relay Type General Purpose
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1549422-R10-E1X4-V15.0K
Ultra Librarian 3D Model Ultra Librarian R10-E1X4-V15.0K CAD Model

Description
