Same model may have multiple batches, images only for reference.

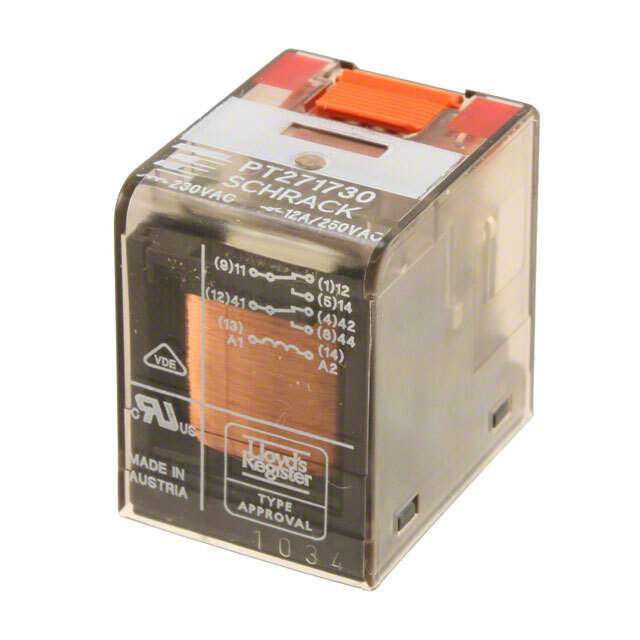

PT581024 Real Image
Same model may have multiple batches, images only for reference.

PT581024

Part No PT581024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 6A 24V / General Purpose Relay 4PDT (4 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series PT, SCHRACK
Package Bulk
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 6 A
Switching Voltage 240VAC - Max
Coil Current 30.8 mA
Coil Type Non Latching
Features Mechanical Indicator, Test Button
Termination Style PC Pin
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 777 Ohms
Base Product Number PT581
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315551-PT581024
Ultra Librarian 3D Model Ultra Librarian PT581024 CAD Model

Description

The PT581024 is a 4PDT power relay from the PT, SCHRACK series.

  • Coil Voltage: 24VDC
  • Coil Resistance: 777 Ohms
  • Application: General Purpose
  • Contact Rating: 6A
  • Switching Voltage: 240VAC - Max
  • Operate Time: 15ms
  • Release Time: 10ms
  • Must Operate Voltage: 18VDC
  • Must Release Voltage: 2.4VDC
  • Mounting: Through Hole
  • Packaging: Bulk
  • Temperature Range: -40°C to 70°C
  • Manufacturer: TE Connectivity Potter & Brumfield Relays
