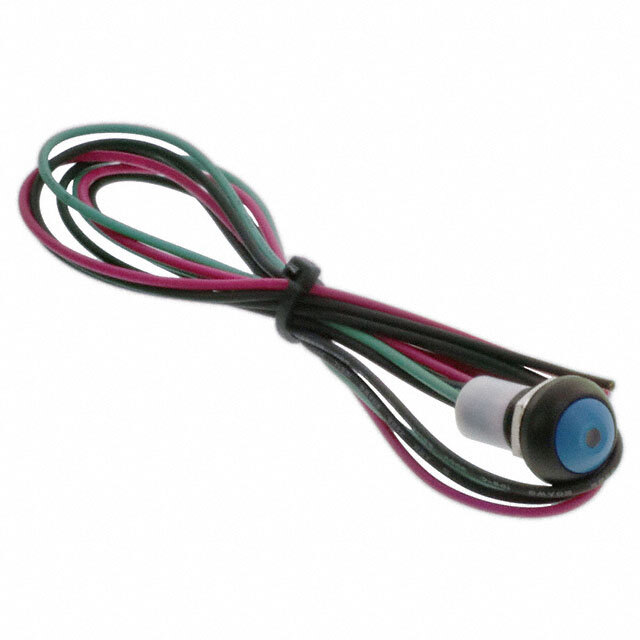

Same model may have multiple batches, images only for reference.

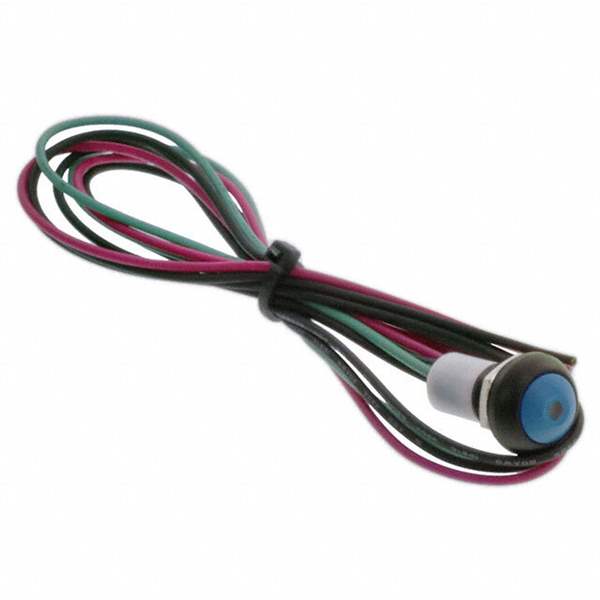

PB6B2FM5M1CAL03S500 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PB6B2FM5M1CAL03S500

Part No PB6B2FM5M1CAL03S500
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 125MA 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Panel Mount, Front
Type Standard, Illuminated
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 125mA (AC), 200mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 50 V
Actuator Type Round, Button
Actuator Marking No Marking
Color - Actuator/Cap Yellow
Illumination Type, Color LED, Red
Termination Style Wire Leads
Ingress Protection IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions Circular - 13.60mm Dia
Temperature Range - Operating -30°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1572316-PB6B2FM5M1CAL03S500
Ultra Librarian 3D Model Ultra Librarian PB6B2FM5M1CAL03S500 CAD Model
