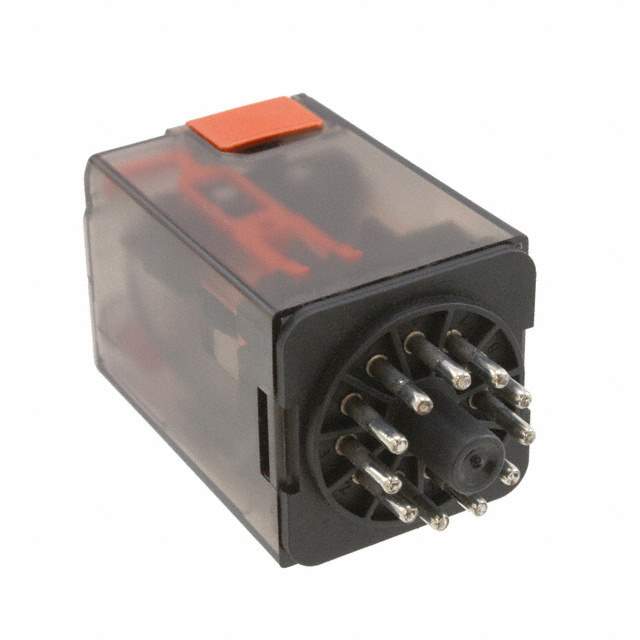

MT3230C4 Real Image
Same model may have multiple batches, images only for reference.

MT3230C4

Part No MT3230C4
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series MT, SCHRACK
Package Tray
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 3PDT (3 Form C)
Contact Rating (Current) 10 A
Switching Voltage 400VAC - Max
Coil Current 50 mA
Coil Type Non Latching
Features Diode, Lighted Indicator, Test Button
Termination Style Plug In, 11 Pin (Octal)
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 475 Ohms
Base Product Number MT32
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1315096-MT3230C4
Ultra Librarian 3D Model Ultra Librarian MT3230C4 CAD Model

Description

The MT3230C4 is a 3PDT (3 Form C) power relay that belongs to the MT, SCHRACK series from TE Connectivity Potter & Brumfield Relays.

  • Termination Style: 11-pin (octal) plug-in
  • Features: diode, lighted indicator, and test button
  • Coil Voltage: 24VDC
  • Coil Resistance: 475 ohms
  • Contact Rating: 10A
  • Switching Voltage: 400VAC - Max
  • Temperature Range: -40°C to 60°C
  • Applications: general-purpose
