Products specifications Report Issue?

Manufacturer TE Connectivity
Standard Package 1
Category Circuit Protection
Family PTC Resettable Fuses
Series PolySwitch
Packaging Reel
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Max) 2A
Current - Trip (It) 4A
R Min/Max 0.020 ~ 0.060 Ohm
Time to Trip 2.5s
Package 1210 (3225 Metric) Concave
Catalog PolySwitch Surface Mount
Win Source Part Number 058917-MICROSMD200F-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MICROSMD200F-2 CAD Model

Description

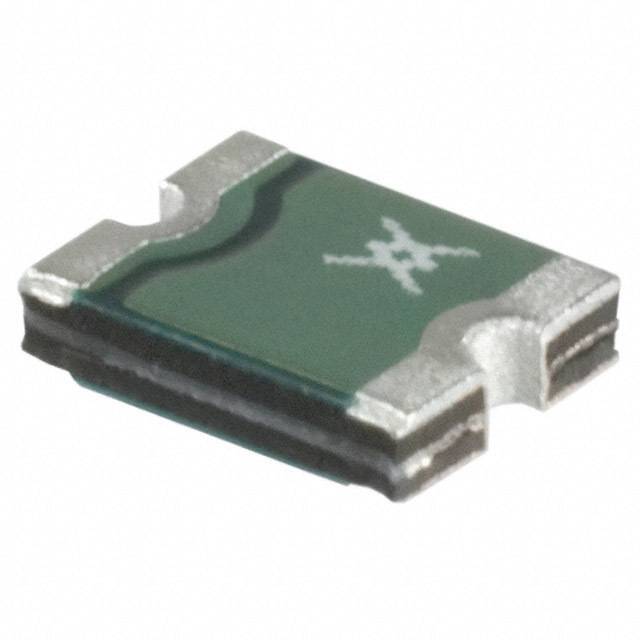

The TE Connectivity MICROSMD200F-2 is a PTC resettable fuse that is designed for circuit protection.

  • Series: PolySwitch series
  • Category: PTC resettable fuses
  • Manufacturer: TE Connectivity
