Same model may have multiple batches, images only for reference.

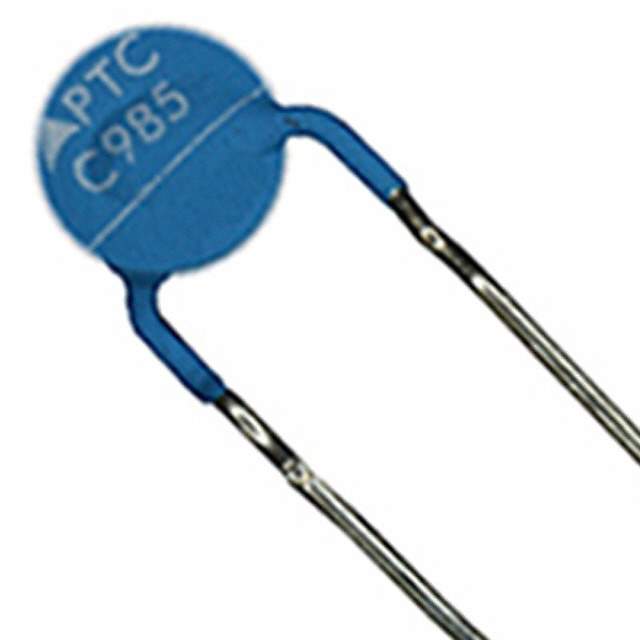

B59985C0120A070 Real Image
Same model may have multiple batches, images only for reference.

B59985C0120A070

Part No B59985C0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 250MA 24V RAD
Datasheet
B59985C0120A070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Type Ceramic
Voltage - Max 30V
Current - Max 1A
Current - Hold (Ih) (Max) 250mA
Current - Trip (It) 500mA
Resistance - 25°C (Typ) 4.6 Ohm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting Through Hole
Dimension 0.256" Dia x 0.138" W (6.50mm x 3.50mm)
Height - Seated (Max) 0.394" (10.00mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 199995-B59985C0120A070
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B59985C0120A070 CAD Model

Description

Overview

The B59985C0120A070 thermistor offers exceptional reliability and accuracy for industrial and commercial applications. Its design ensures stable performance and easy integration.

Features and Benefits

  • Precise temperature measurements
  • Wide operating temperature range
  • Long-term stability and reliability
  • Compact and lightweight design

Applications

  • HVAC systems
  • Home appliances
  • Environmental monitoring
  • Automotive electronics

Choose the B59985C0120A070 for a trustworthy solution in temperature-critical applications.
