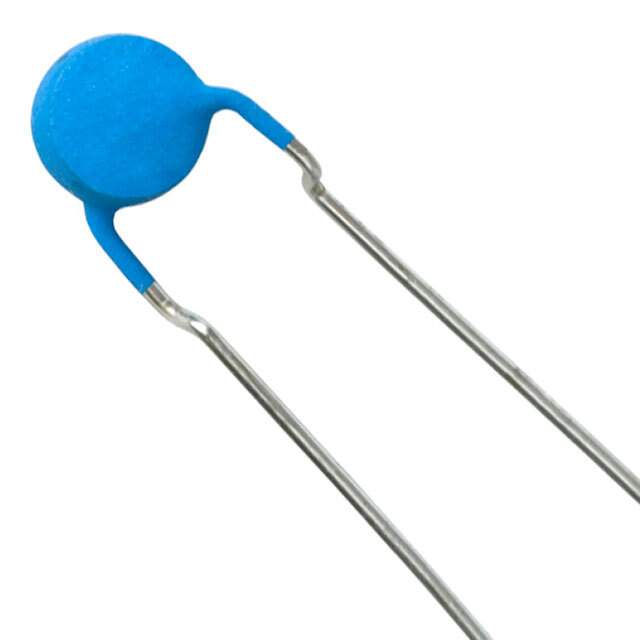

B59885C0120A070

Part No B59885C0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 15MA 500V RAD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Packaging Bulk
Status Active
Type Ceramic
Voltage - Max 550V
Current - Max 100mA
Current - Hold (Ih) (Max) 15mA
Current - Trip (It) 30mA
Resistance - 25°C (Typ) 1.2 kOhm
Temperature Range - Operating 0°C to 60°C
Mounting Through Hole
Dimension 0.256" Dia x 0.197" W (6.50mm x 5.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Lead Spacing 0.197" (5.00mm)
Approvals UR
Win Source Part Number 199978-B59885C0120A070
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B59885C0120A070 CAD Model

Description

The B59885C0120A070 offers advanced thermal management capabilities, making it perfect for a variety of high-tech applications. This component is designed to operate efficiently under high temperatures, ensuring stability and performance.

Features and Benefits

  • Enhanced Thermal Resistance: Protects circuits from overheating.
  • Wide Operating Range: Suitable for diverse environments and applications.
  • Compact Footprint: Facilitates integration into tight spaces.

Applications

  • Heat-sensitive electronic applications
  • Power supply units
  • Smart home devices

Utilizing the B59885C0120A070 will provide the necessary heat protection and performance efficiency needed in demanding environments.
