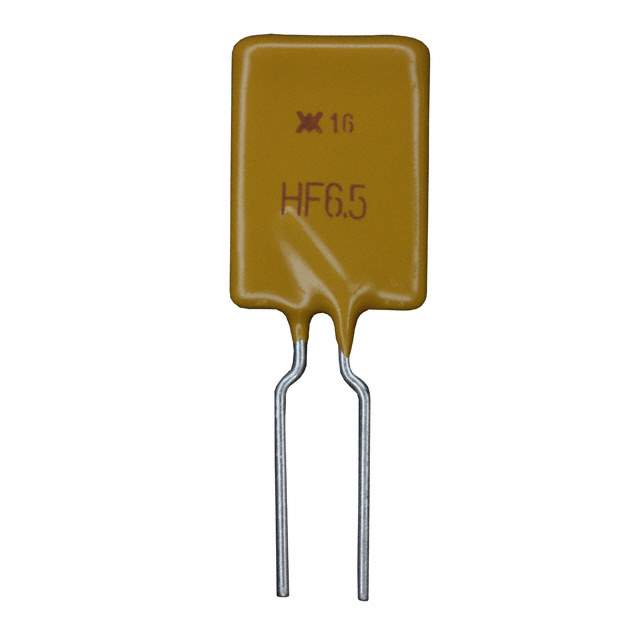

Same model may have multiple batches, images only for reference.

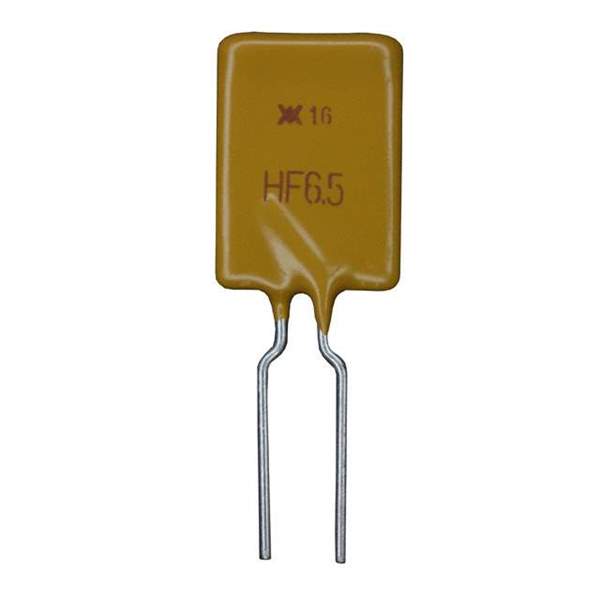

RHEF650-2 Real Image
Same model may have multiple batches, images only for reference.

RHEF650-2

Part No RHEF650-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 6.5A
Datasheet
RHEF650-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Max) 6.5A
Current - Trip (It) 12A
Time to Trip 5.5s
Resistance - Initial (Ri) (Min) 11 mOhm
Resistance - Post Trip (R1) (Max) 26 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Dimension 0.500" L x 0.118" W (12.70mm x 3.00mm)
Height - Seated (Max) 0.880" (22.20mm)
Lead Spacing 0.199" (5.05mm)
Approvals CSA, TUV, UL
Win Source Part Number 1092097-RHEF650-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RHEF650-2 CAD Model

Description

The Littelfuse RHEF650-2 is a polymeric circuit breaker with a maximum voltage of 16V and a maximum current of 100A.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Height: 0.880 inches
  • Lead Spacing: 0.199 inches
  • Approvals: CSA, TUV, and UL approved
  • Suitable for use in: a variety of applications, such as automotive and industrial equipment
  • Time to Trip: 5.5 seconds
  • Resistance: 11 mOhm (initial) and 26 mOhm (post trip) (maximum)
