Same model may have multiple batches, images only for reference.

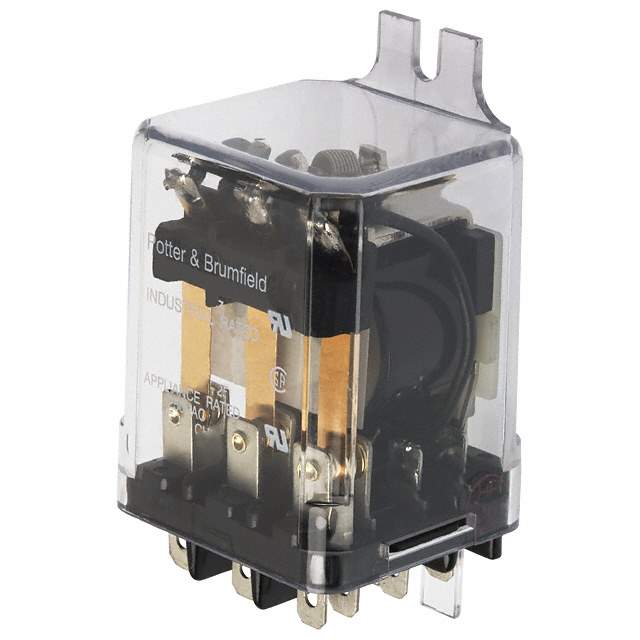

KUP-11D55-24 Real Image
Same model may have multiple batches, images only for reference.

KUP-11D55-24

Part No KUP-11D55-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description KUP Series Panel Plug-in Relay | RELAY GEN PURPOSE DPDT 10A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Mounting Style Chassis Mount
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10A
Switching Voltage 240VAC - Max
Coil Current 51.0mA
Coil Type Non Latching
Termination Style Quick Connect - 0.187" (4.7mm)
Coil Insulation Class B
Must Operate Voltage 18 VDC
Operate Time 15ms
Release Time 10ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 472 Ohms
Manufacturer Pack Quantity 25
MSL Level Not Applicable
Win Source Part Number 1194089-KUP-11D55-24
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KUP-11D55-24 CAD Model

Description

TE Connectivity Potter & Brumfield Relays DPDT (2 Form C) Contact Form Relay is a general-purpose relay that operates @ a coil voltage of 24VDC.

  • Termination Style: quick connect termination style of 0.187" (4.7mm)
  • Mounting Style: chassis mount
  • Contact Material: silver cadmium oxide (AgCdO)
  • Coil Resistance: 472 Ohms
  • Coil Current: 51.0mA
  • Operate Time: 15ms
  • Release Time: 10ms
  • Contact Rating (Current): 10A
  • Switching Voltage: 240VAC - Max
  • Temperature Range for Operating: -45°C to 70°C
  • Supply and demand status: limited, with 25 manufacturer pack quantity.
