Same model may have multiple batches, images only for reference.

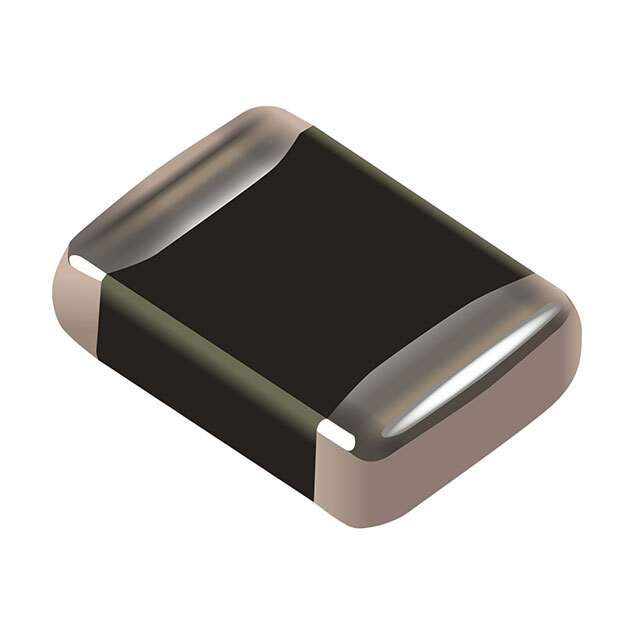

AV20K1206201NIR1HT Real Image
Same model may have multiple batches, images only for reference.

AV20K1206201NIR1HT

Part No AV20K1206201NIR1HT
Manufacturer Bourns Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR  /  22 V 200 A Varistor 1 Circuit Surface Mount, MLCV 1206 (3216 Metric)
Datasheet
AV20K1206201NIR1HT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Bourns Inc.
Series AVHT
Package Tape & Reel
Maximum AC Volts 20 V
Maximum DC Volts 26 V
Varistor Voltage (Min) 19.8 V
Varistor Voltage (Typ) 22 V
Varistor Voltage (Max) 24.2 V
Current - Surge 200 A
Energy 1.6J
Number of Circuits 1
Capacitance @ Frequency 780 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 1206 (3216 Metric)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Names 118-AV20K1206201NIR1HTDKR,118-AV20K1206201NIR1HTTR,118-AV20K1206201NIR1HTCT
Standard Package 2,500
Win Source Part Number 1127391-AV20K1206201NIR1HT
Ultra Librarian 3D Model Ultra Librarian AV20K1206201NIR1HT CAD Model

Description

The Bourns Inc. AV20K1206201NIR1HT is a TVS varistor, designed for use in circuits that require protection against voltage surges.

  • Capacitance: 780 pF @ 1 kHz
  • Varistor Voltage: 19.8V to 24.2V
  • Maximum Surge Current: 200A
  • Energy Rating: 1.6J
  • Operating Temperature: -55°C to 150°C
