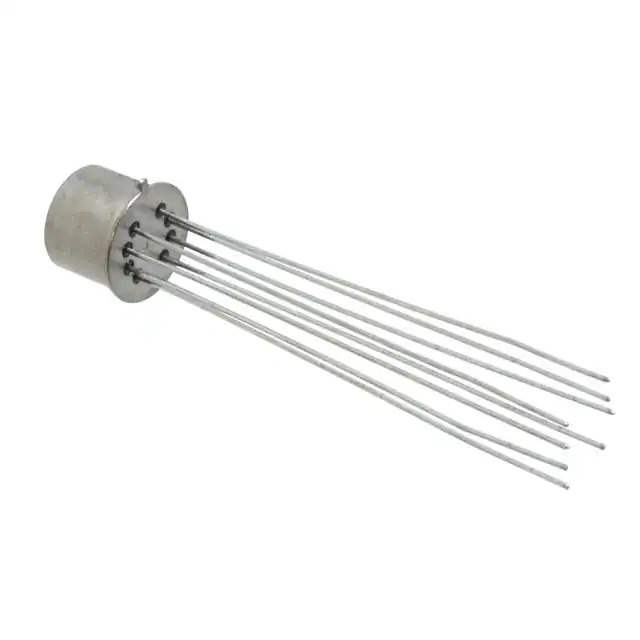

JMACD-26XP Real Image
Same model may have multiple batches, images only for reference.

JMACD-26XP

Part No JMACD-26XP
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOS DPDT 1A 26.5VDC / General Purpose Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr TE Connectivity
Series Military, MIL-R-39016/15, MAD, CII
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 26.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 115VAC, 28VDC - Max
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Seal Rating Sealed - Hermetically
Must Operate Voltage 14.2 VDC
Must Release Voltage 1.37 VDC
Operate Time 2 ms
Release Time 4 ms
Temperature Range - Operating -65°C ~ 125°C
Contact Material Silver Palladium (AgPd), Gold (Au)
Relay Type General Purpose
Coil Resistance 1560 Ohms
Base Product Number JMACD
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 880685-JMACD-26XP
Ultra Librarian 3D Model Ultra Librarian JMACD-26XP CAD Model

Description

The Military Signal Relay is a high-quality relay designed for use in electronic circuits.

  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 26.5VDC
  • Contact Rating: 1A
  • Switching Voltage: 115VAC and 28VDC
  • Operating Temperature: -65°C to 125°C
  • Seal Rating: Sealed Hermetically
  • Termination Style: PC Pin
  • Manufacturer: TE Connectivity
