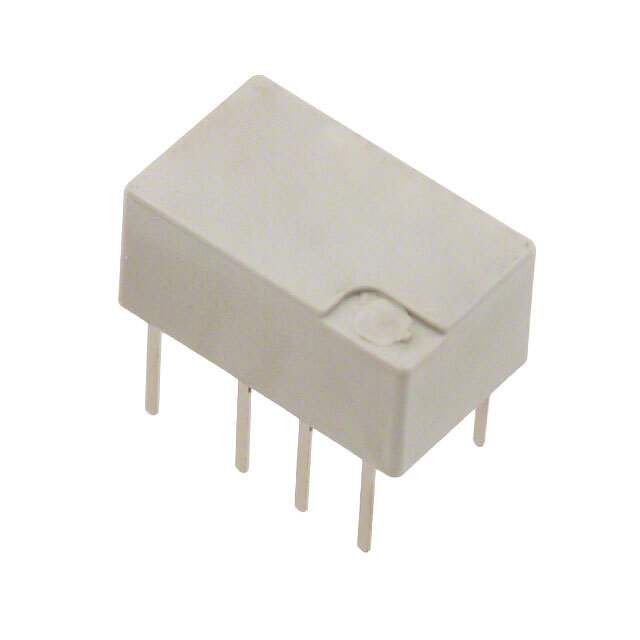

IM03TS Real Image IM03TS real image
Same model may have multiple batches, images only for reference.
IM03TS Real Image IM03TS real image
IM03TS Real Image IM03TS real image
Same model may have multiple batches, images only for reference.

IM03TS

Part No IM03TS
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 28mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 3.75 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 3ms
Release Time 3ms
Features Sealed - Hermetically
Mounting Through Hole
Termination Style PC Pin
Coil Power 140 mW
Coil Resistance 178 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 205145-IM03TS
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IM03TS CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 205145-IM03TS is a DPDT (2 Form C) telecom relay that is used in a variety of applications.

  • Product Name: TE Connectivity Potter & Brumfield Relays 205145-IM03TS
  • Relay Type: DPDT (2 Form C) telecom relay
  • Coil Voltage: 5VDC
  • Coil Resistance: 178 Ohms
  • Contact Rating (Current): 2A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Temperature Range: -40°C to 85°C
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • RoHS Compliant: Yes
