Same model may have multiple batches, images only for reference.

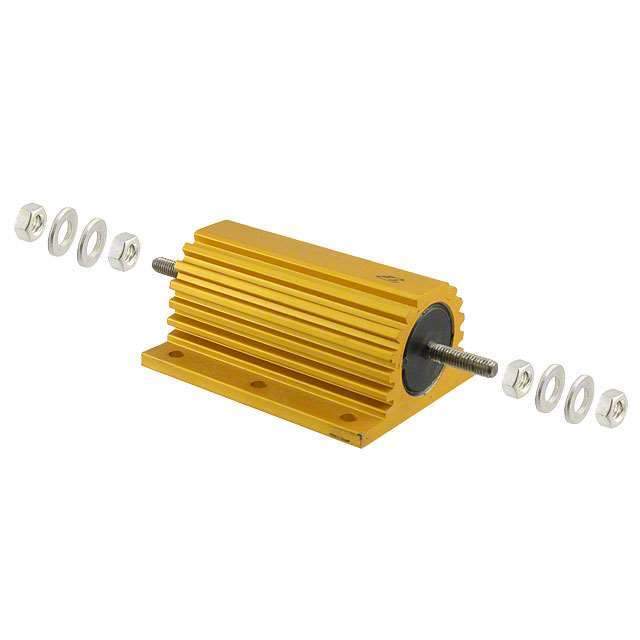

HSC2002R2J Real Image
Same model may have multiple batches, images only for reference.

HSC2002R2J

Part No HSC2002R2J
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 2.2 OHM 5% 200W / 2.2 Ohms ±5% 200W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 2.2 Ohms
Tolerance ±5%
Power (Watts) 200W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 3.543" L x 2.874" W (90.00mm x 73.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Lead Style Terminal Screw Type
Package / Case Axial, Box
Base Product Number HSC200
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.29.0000
Other Names 1-1630019-6-ND,A102383,116300196,1-1630019-6
Standard Package 2
Win Source Part Number 1003741-HSC2002R2J
Ultra Librarian 3D Model Ultra Librarian HSC2002R2J CAD Model

Description

The TE Connectivity Passive Product HSC2002R2J is a chassis mount resistor that is used in a wide range of applications.

  • Component Type: Wirewound
  • Resistance: 2.2 Ohms
  • Power: 200W
  • Package: Bulk
  • Height: 1.654" (42.00mm)
  • Terminal Type: Screw
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Manufacturer: TE Connectivity Passive Product
