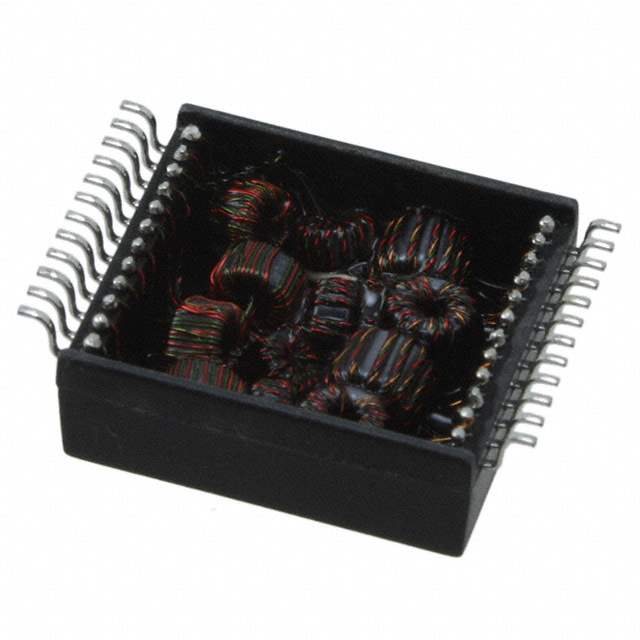

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Height - Seated (Max) 0.235" (5.97mm)
Weight 0.06 oz (1.71g)
Win Source Part Number 040426-H5008NLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name H5008
Introduction Date February 14, 2011
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian H5008NLT CAD Model

Description

The Pulse Electronics Corporation H5008NLT is a high-popularity transformer with a balanced supply and demand status. It features a height-seated (max) of 0.235" (5.97mm) and a weight of 0.06 oz (1.71g). The family name is H5008, and it belongs to the transformers category. The alternative parts (cross-reference) include the H5008FNLT. The ECCN is EAR99, and the estimated EOL date is 2026.
