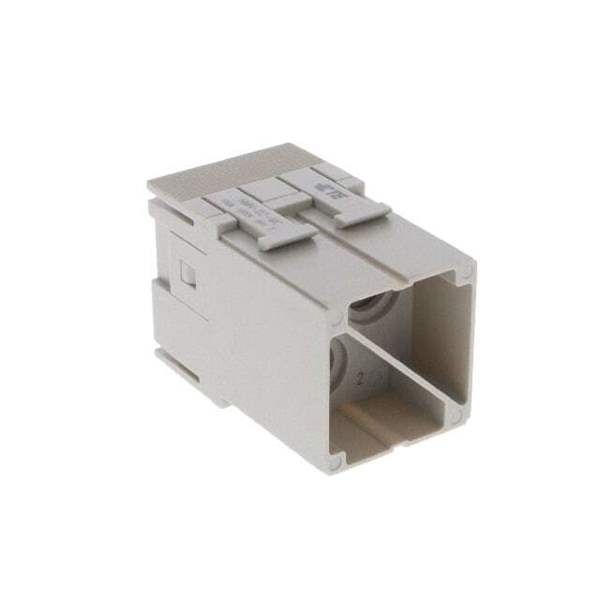

HMN-D2-MC TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors - Inserts, Modules
Mfr TE Connectivity AMP Connectors
Series HMN
Package Bulk
Connector Type Module without Contacts
Gender Male
Number of Positions 2
Termination Style Crimp
Voltage Rating 1000V
Current Rating (Amps) 100A
Contact Type CNM
Temperature Range - Operating -40°C ~ 125°C
Housing Material Polycarbonate (PC)
Material Flammability Rating EN45545
Base Product Number HMN-D
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1314819-HMN-D2-MC
Ultra Librarian 3D Model Ultra Librarian HMN-D2-MC CAD Model

Description

The HMN-D2-MC is a male connector module designed by TE Connectivity AMP Connectors.

  • Type: It is a heavy-duty connector insert.
  • Positions: features two positions.
  • Termination Style: has a crimp termination style.
  • Housing Material: The connector module is made of polycarbonate (PC) housing material.
  • Flammability Rating: has a material flammability rating of EN45545.
  • Voltage Rating: has a voltage rating of 1000V.
  • Current Rating: has a current rating of 100A.
  • Temperature Range: The temperature range for operating the connector module is -40°C to 125°C.
  • Contact Type: The contact type is CNM.
  • Contact Finish and Material: The contact finish and contact material are unspecified.
  • Summary: The HMN-D2-MC is a reliable and durable connector module that is suitable for use in various heavy-duty applications.
