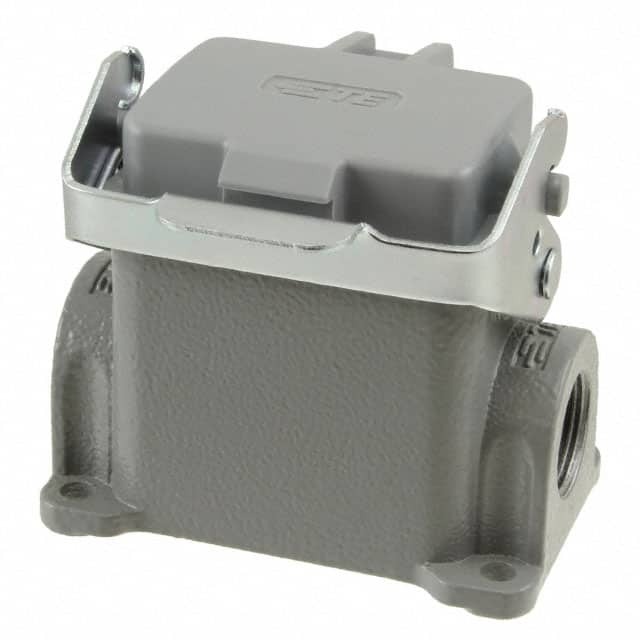

H6B-SDR-2M20 TE Connectivity
Same model may have multiple batches, images only for reference.

H6B-SDR-2M20

Part No H6B-SDR-2M20
Manufacturer TE Connectivity
Catalog Heavy Duty Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors - Housings, Hoods, Bases
Mfr TE Connectivity AMP Connectors
Series HB
Package Bulk
Connector Type Base - Box Mount
Style Side Entry
Size 6B
Lock Location Locking Clip (1) on Base Bottom
Thread Size M20
Dimension 3.228" L x 2.047" W x 2.402" H (82.00mm x 52.00mm x 61.00mm)
Housing Color Gray
Features Cover, Feed Through
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum Alloy, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number H6B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1315621-H6B-SDR-2M20
Ultra Librarian 3D Model Ultra Librarian H6B-SDR-2M20 CAD Model

Description

The 1315621-H6B-SDR-2M20 is a heavy-duty connector housing from TE Connectivity AMP Connectors.

  • Entry Style: Side Entry
  • Mount Type: Base Box Mount
  • Size: 6B
  • Housing Material: Aluminum Alloy Die-Cast
  • Housing Color: Gray
  • Ingress Protection: IP65 (Dust Tight and Water-Resistant)
  • Features: Cover and Feed-Through
  • Thread Size: M20
  • Operating Temperature: -40°C to 125°C
  • Housing Finish: Powder-Coated
  • ECCN: EAR99
  • HTSUS: 8538.90.8180
