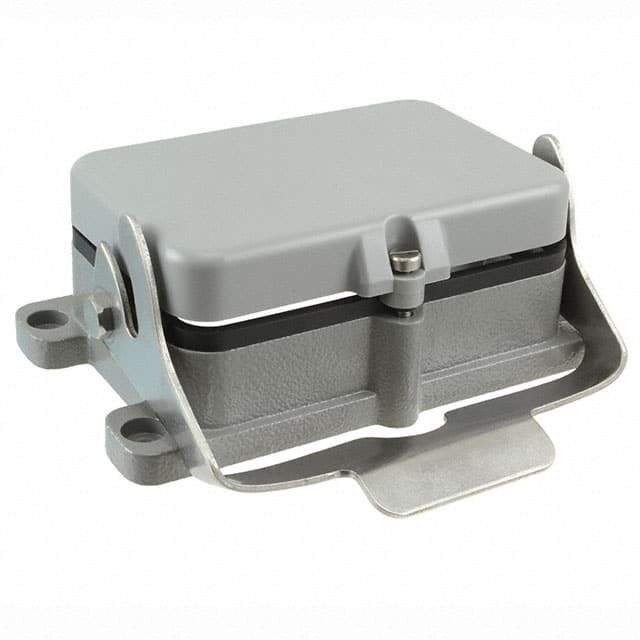

H48B-AD-LB TE Connectivity
Same model may have multiple batches, images only for reference.

H48B-AD-LB

Part No H48B-AD-LB
Manufacturer TE Connectivity
Catalog Heavy Duty Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors - Housings, Hoods, Bases
Mfr TE Connectivity AMP Connectors
Series HB
Package Bulk
Connector Type Base - Panel Mount
Style Bottom Entry
Size 48B
Lock Location Locking Clip (1) on Base Bottom
Dimension 6.496" L x 3.780" W x 1.559" H (165.00mm x 96.00mm x 39.60mm)
Housing Color Gray
Features Cover
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum Alloy, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number H48B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1316151-H48B-AD-LB
Ultra Librarian 3D Model Ultra Librarian H48B-AD-LB CAD Model

Description

The TE Connectivity AMP Connectors heavy-duty connector housing is a gray aluminum alloy, die-cast base with a size of 48B and a bottom-entry style.

  • Material: Aluminum alloy, die-cast
  • Size: 48B
  • Entry Style: Bottom-entry
  • Cover: With cover
  • Ingress Protection: IP65
  • Operating Temperature Range: -40°C to 125°C
  • Category: Connectors, Interconnects>Heavy Duty Connectors - Housings, Hoods, Bases
  • Packaging: Bulk
  • Lock Location: Locking clip (1) on the base bottom
  • MSL Level: 1 (unlimited)
  • HTSUS: 8538.90.8180
  • Base Product Number: H48B
