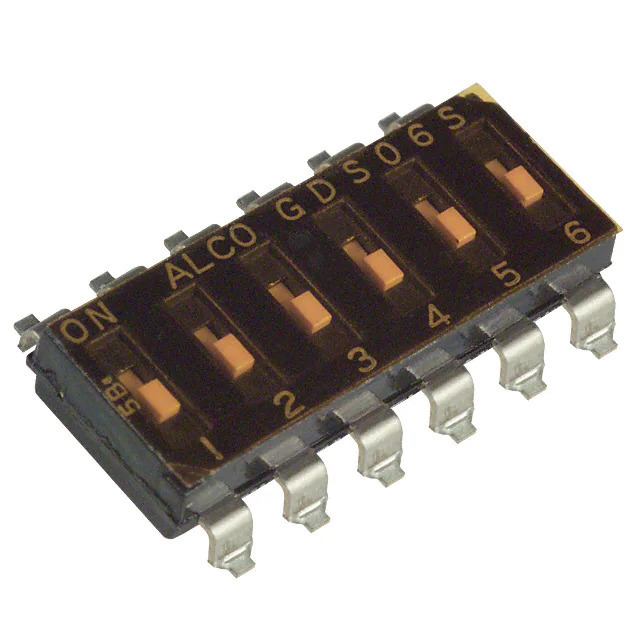

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series GDS
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.114" (2.90mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.594" (15.09mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number GDS06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1378492-GDS06S
Ultra Librarian 3D Model Ultra Librarian GDS06S CAD Model

Description

The GDS series by TE Connectivity ALCOSWITCH Switches is an obsolete DIP switch.

  • Mounting Type: Surface Mount
  • Termination Style: Gull Wing
  • Number of Positions: 6
  • Current Rating: 25mA @ 24VDC
  • Actuator Type: Slide
  • Mechanical Life: 1,000 Cycles
  • Body Material: Polyphenylene Sulfide (PPS)
  • Features: Washable
  • Operating Temperature: -30°C ~ 85°C
  • Product Status: Obsolete
