The BTA26-700BRG is a high-performance triac manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable components. This particular triac is designed to handle high power AC loads with exceptional efficiency, making it an ideal choice for a wide range of applications in industrial, consumer, and home automation markets.
Key Features
- High Current Rating: The BTA26-700BRG can handle currents up to 25A, which makes it suitable for controlling large loads.
- High Voltage Capability: With a peak off-state voltage of 700V, this triac can be used in applications with high voltage requirements.
- Gate Trigger Voltage: It features a gate trigger voltage (Vgt) of 1.3V, ensuring low gate drive requirements and compatibility with digital control circuits.
- Thermal Resistance: The device has a low thermal resistance junction-to-case, allowing for efficient heat dissipation and reliable operation at high temperatures.
- Snubberless Technology: The BTA26-700BRG incorporates ST's snubberless technology, which helps to reduce the need for additional components and simplifies circuit design.
Applications
The versatility of the BTA26-700BRG triac makes it suitable for a variety of applications, including:
- AC motor control circuits
- Lighting control systems
- Heating and temperature control modules
- AC power switching
- Inductive load control
Package and Quality

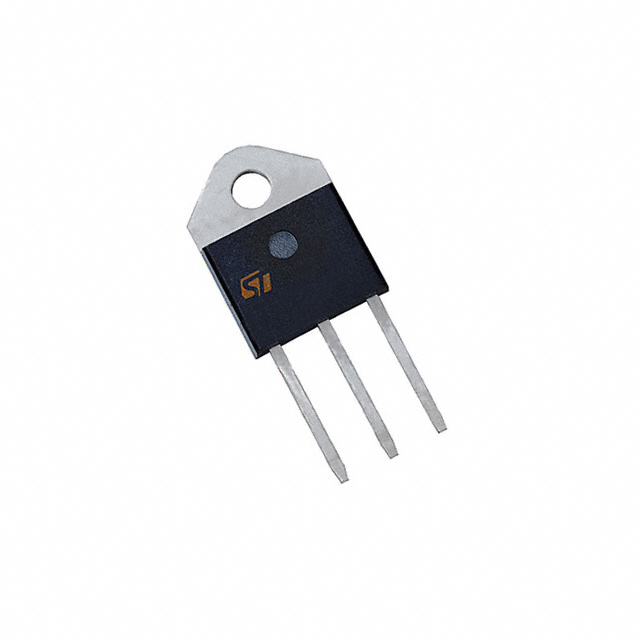

The BTA26-700BRG comes in a robust and insulated RD91 package, ensuring safe handling and mounting. The package is designed to optimize the thermal transfer and maximize the electrical performance. STMicroelectronics is committed to delivering high-quality products, and the BTA26-700BRG is no exception. It is manufactured to meet stringent quality standards, ensuring reliability and performance consistency for the end-user.
Please note that the above information is for reference only and it is recommended to consult the datasheet for the complete specifications and guidelines.
