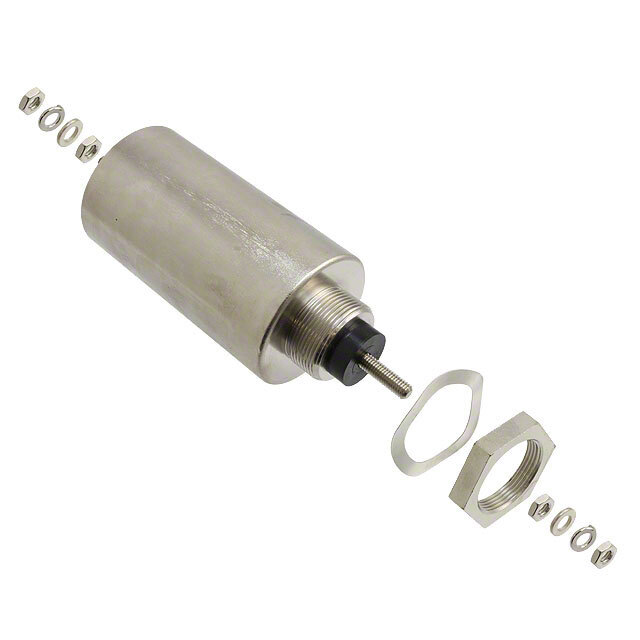

FN7611-10-M3

Part No FN7611-10-M3
Manufacturer TE Connectivity
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 70NH/10000PF BOLT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Resistance - Channel (Ohms) 0.0012
Current 10 A
Values L = 70nH, C = 10000pF
ESD Protection No
Temperature Range - Operating -40°C ~ 100°C
Applications Data Lines for Mobile Devices
Voltage - Rated 1000V (1kV)
Mounting Type Bolt Mount
Case / Package Axial - Threaded Terminals
Size / Dimension 0.787" Dia x 2.717" L (20.00mm x 69.00mm)
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1527311-FN7611-10-M3
Ultra Librarian 3D Model Ultra Librarian FN7611-10-M3 CAD Model
