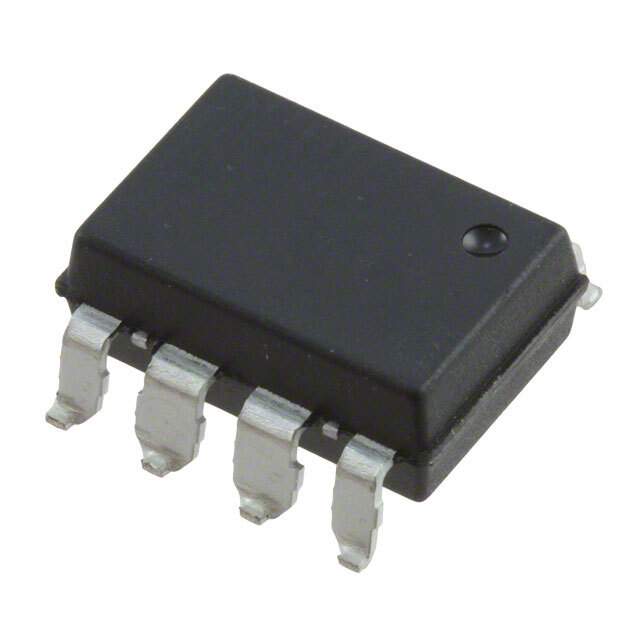

ASSR-302C-502E Real Image
Same model may have multiple batches, images only for reference.

ASSR-302C-502E

Part No ASSR-302C-502E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description RELAY SSR DPST 0.05A 8SMD GW / Solid State Relay 10mA 1.65V DC-IN 0.05A 250V AC-OUT 8-Pin PDIP SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Broadcom Limited
Series ASSR
Packaging Reel package
Circuit DPST (2 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 50 Ohm
Load Current 50mA
Voltage - Input 1.3VDC
Voltage - Load 0 ~ 250 V
Mounting SMD
Termination Style Gull Wing
Package 8-SMD (0.300", 7.62mm)
Manufacturer Package 8-DIP Gull Wing
Relay Type Relay
Win Source Part Number 768863-ASSR-302C-502E
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name ASSR-302C
Introduction Date November 01, 2005
ECCN EAR99
Country of Origin Thailand
Halogen Free Not Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ASSR-302C-502E CAD Model

Description

The Broadcom Limited 768863-ASSR-302C-502E is a DPST (2 Form A) relay with an AC and DC output type.

  • Voltage Input: 1.3VDC
  • Load Current: 50mA
  • Relay Type: Relay
  • Voltage Load: 0 ~ 250 V
  • Packaging: Reel package
  • Termination Style: Gull wing
  • Mounting Style: SMD
  • Package: 8-SMD (0.300", 7.62mm)
  • On-State Resistance: 50 Ohm
  • Alternative Part: ASSR-302C-002E
  • Estimated EOL Date: 2024
  • Quantity Per Package: 1k pcs
