Same model may have multiple batches, images only for reference.

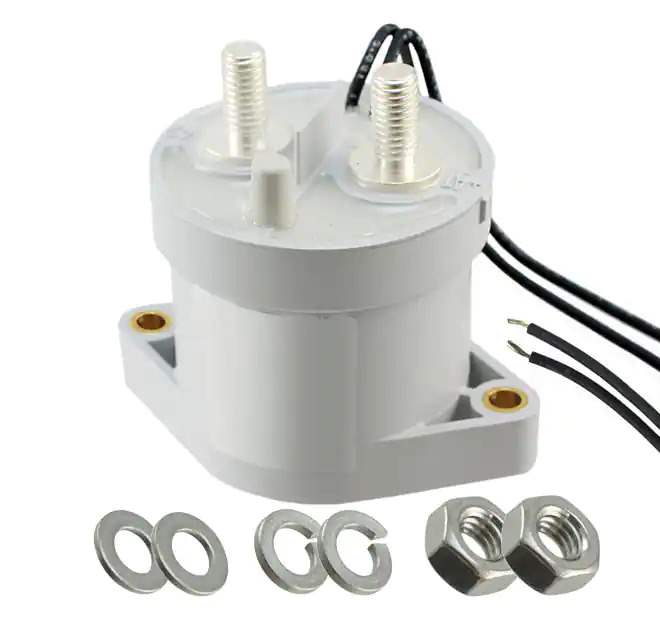

EV200A1ANA Real Image
Same model may have multiple batches, images only for reference.

EV200A1ANA

Part No EV200A1ANA
Manufacturer TE Connectivity
Catalog Contactors (Electromechanical)
Description RELAY CONTACTOR SPST 500A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Contactors (Electromechanical)
Mfr TE Connectivity
Series EV200, KILOVAC
Package Bulk
Product Status Active
Mounting Type Chassis Mount
Coil Voltage 9 ~ 36VDC
Contact Form SPST-NO (DM) (1 Form X)
Contact Rating (Current) 500 A
Switching Voltage 900VDC - Max
Features Requires External Economizer, Sealed - Hermetically
Termination Style Stud, Wire Leads
Temperature Range - Operating -40°C ~ 85°C
Must Operate Voltage 9 VDC
Must Release Voltage 6 VDC
Operate Time 15 ms
Release Time 12 ms
Coil Current 130 mA
Base Product Number EV200
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0045
Win Source Part Number 918741-EV200A1ANA
Ultra Librarian 3D Model Ultra Librarian EV200A1ANA CAD Model

Description

The EV200, KILOVAC 847706 is a contactor relay designed for high-power applications.

  • Contact Form: SPST-NO (DM)
  • Maximum Switching Voltage: 900VDC
  • Contact Material: not specified
  • Coil Resistance: not specified
  • Coil Voltage Range: 9V to 36VDC
  • Coil Current: 130mA
  • Contact Rating: 500A
  • Sealing: hermetically sealed
  • Economizer: requires an external economizer
  • Mounting Type: chassis mount
  • Operating Temperature Range: -40°C to 85°C
  • Product Status: active
  • Standard Package: 1 piece
  • Manufacturer: TE Connectivity
