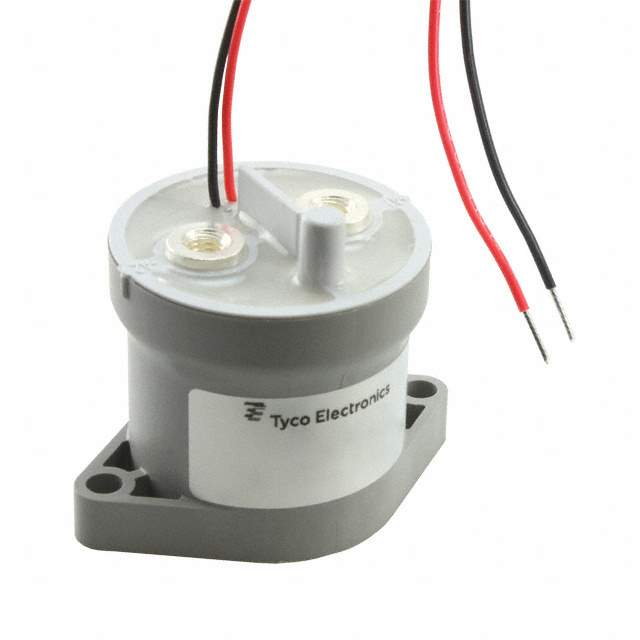

EV100AAANA Real Image
Same model may have multiple batches, images only for reference.

EV100AAANA

Part No EV100AAANA
Manufacturer TE Connectivity
Catalog Contactors (Electromechanical)
Description RELAY CONTACTOR SPST 100A 36V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Contactors (Electromechanical)
Mfr TE Connectivity Aerospace, Defense and Marine
Series EV100, KILOVAC
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 36VDC
Contact Form SPST-NO (DM) (1 Form X)
Contact Rating (Current) 100 A
Switching Voltage 600VDC - Max
Features Sealed - Hermetically
Termination Style Stud
Temperature Range - Operating -40°C ~ 85°C
Must Operate Voltage 9 VDC
Must Release Voltage 8 VDC
Operate Time 30 ms
Release Time 10 ms
Coil Current 250 mA
Coil Power 3W
Coil Resistance 8Ohms
Base Product Number EV10
Other Names 516183980,A104338,5-1618398-0,A122253,A104338
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0045
Win Source Part Number 1237328-EV100AAANA
Ultra Librarian 3D Model Ultra Librarian EV100AAANA CAD Model

Description

The EV100 KILOVAC Relay is a high-performance electromechanical relay designed for use in a variety of applications.

  • Design: Sealed-Hermetic
  • Contact Form: SPST
  • Contact Rating: 100 A
  • Switching Voltage: 600 VDC
  • Coil Voltage: 36VDC
  • Coil Resistance: 8 Ohms
  • Operate Time: 30 ms
  • Release Time: 10 ms
  • Mounting Type: Chassis Mount
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • Must Operate Voltage: 9 VDC
  • Must Release Voltage: 8 VDC
