Same model may have multiple batches, images only for reference.

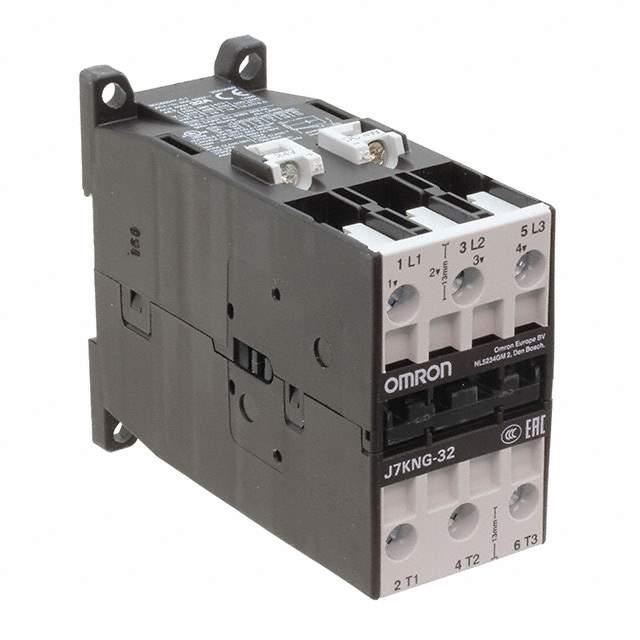

J7KNG-32 24D Real Image
Same model may have multiple batches, images only for reference.

J7KNG-32 24D

Part No J7KNG-32 24D
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY CONTACTOR 3PST 32A 24V /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Contactors (Electromechanical)
Mfr Omron Automation and Safety
Series J7KN
Package Bulk
Mounting Type Chassis Mount, DIN Rail
Coil Voltage 24VDC
Contact Form 3PST-NO (3 Form A)
Contact Rating (Current) 32 A
Switching Voltage 400VAC - Max
Termination Style Screw Terminal
Temperature Range - Operating -40°C ~ 60°C
Base Product Number J7KNG
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Other Names J7KNG/32 24D,Z8161,J7KNG-32 24D-ND,J7KNG3224D
Standard Package 1
Win Source Part Number 1130548-J7KNG-32 24D
Ultra Librarian 3D Model Ultra Librarian J7KNG-32 24D CAD Model

Description

The J7KN series from Omron Automation and Safety is a 3PST-NO (3 Form A) contact form relay that is designed for chassis mount and DIN rail mounting.

  • Contact Form: 3PST-NO (3 Form A)
  • Mounting: Chassis Mount and DIN Rail
  • Switching Voltage: 400VAC (maximum)
  • Contact Rating: 32A
  • Coil Voltage: 24VDC
  • Coil Resistance and Power: Not Specified
  • Operating Temperature Range: -40°C to 60°C
  • Package Includes: One piece of J7KNG-3224D relay with screw terminal termination style
  • Ideal for: Use in various electromechanical applications.
