Same model may have multiple batches, images only for reference.

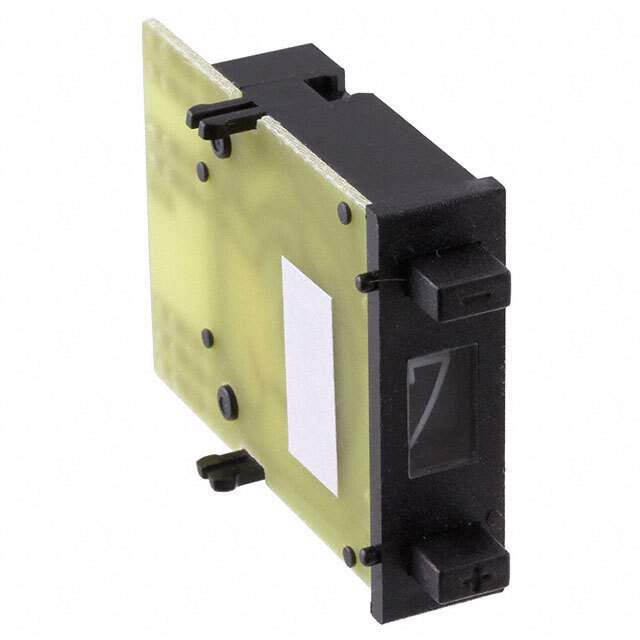

DPS10131AK Real Image
Same model may have multiple batches, images only for reference.

DPS10131AK

Part No DPS10131AK
Manufacturer TE Connectivity
Catalog Thumbwheel Switches
Description SWITCH THUMB BCD 0.4VA 20V / Thumbwheel Switch BCD 0.4VA @ 20VAC/DC Panel Mount, Snap-In
Datasheet
DPS10131AK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Thumbwheel Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series DPS10
Package Bulk
Output Code BCD
Read Out 0 ~ 9
Number of Sections 1
Display Characters - Height 0.275" (7.00mm)
Actuator Type Pushwheel
Contact Rating @ Voltage 0.4VA @ 20VAC/DC
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Panel Mount, Snap-In
Termination Style Card Edge/Solder Pad
End Caps Sold Separately
Section Width 0.394" (10.00mm)
Temperature Range - Operating -20°C ~ 80°C
Depth Behind Flange 39.00mm
Housing Material Polyphenylene Oxide (PPO)
Color Black
Base Product Number DPS10131
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Other Names 450-2416,DPS10131AK-ND,1437603-2
Standard Package 10
Win Source Part Number 1182926-DPS10131AK
Ultra Librarian 3D Model Ultra Librarian DPS10131AK CAD Model

Description

The DPS10131AK is a thumbwheel switch that is part of the DPS10 series.

  • Series: DPS10
  • Termination Style: Card Edge/Solder Pad
  • Color: Black
  • Contact Finish: Gold
  • Package: Bulk
  • Contact Material: Copper Alloy
  • Housing Material: Polyphenylene Oxide (PPO)
  • Readout: 0-9
  • Actuator Type: Pushwheel
  • Contact Rating: 0.4VA @ 20VAC/DC
  • Display Character Height: 0.275" (7.00mm)
  • Operating Temperature Range: -20°C to 80°C
