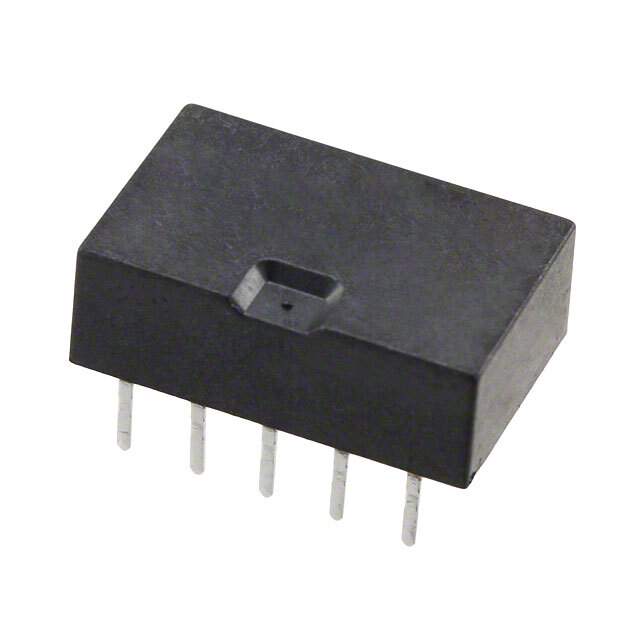

D3023

Part No D3023
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 5V / Signal Relay 5VDC 2A DPDT( (14mm 9mm 5.25mm)) THT Automotive
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Standard Package 1000
Category Relays
Family Signal Relays Up to 2 Amps
Series FP2 AXICOM
Packaging Tube
Relay Type Telecom
Coil Type Non Latching
Coil Current 16mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC 220VDC - Max
Turn On Voltage (Max) 3.5 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 4ms
Release Time 3ms
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Palladium (Pd) Ruthenium (Ru) Gold (Au)
Coil Power 80 mW
Coil Resistance 313 Ohms
Operating Temperature Range -40°C ~ 85°C
Catalog FP2 AXICOM Series
Win Source Part Number 080307-D3023
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Signal Processing, Communications & Networking, Test & Measurement, Automotive, Audio, Medical, Consumer Electronics
Family Name D30
ECCN EAR99
Country of Origin Belgium, Netherlands, Portugal, Switzerland
Halogen Free Not Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian D3023 CAD Model

Description

D3023 Electronic Component Description

The D3023 electronic component is crafted for efficiency and versatility, making it a staple for a multitude of electronic projects. Whether in commercial or personal use, it combines quality with innovation.

Features and Benefits

  • High precision and accuracy
  • Energy-efficient design
  • Robust construction mitigating wear and tear
  • Compatible with various devices

Applications

  • Automotive systems
  • Home automation
  • Consumer electronics
  • Automation controls

The D3023 assures reliable function and optimal performance across diverse electronic applications.
