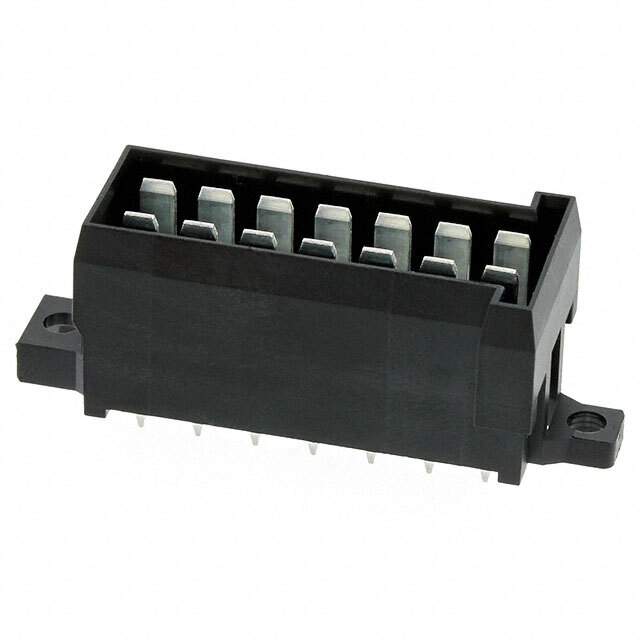

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Plug
Contact Type Tab
Pitch - Mating 0.197" (5.00mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.217" (5.51mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Mounting Style Through Hole
Termination Solder
Contact Length - Mating 0.366" (9.30mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.720" (18.30mm)
Contact Shape Rectangular
Contact Finish - Mating Silver
Contact Material Copper Zinc
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide, Mounting Flange
Insulation Color Black
Manufacturer Pack Quantity 378
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810505-963357-3
Ultra Librarian 3D Model Ultra Librarian 963357-3 CAD Model

Description

The TE Connectivity AMP Connectors plug connector is designed for board-to-cable/wire applications. It has 14 positions loaded with all contacts, and it is mounted through-hole.

  • Applications: Board-to-Cable/Wire
  • Positions: 14 (All Contacts Loaded)
  • Mounting Style: Through Hole
  • Connector Type: Tab
  • Contact Material: Copper Zinc
  • Mating Finish: Silver
  • Features: Board Guide, Mounting Flange
  • Pitch-Mating: 0.197" (5.00mm)
  • Row Spacing-Mating: 0.217" (5.51mm)
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Insulation Height: 0.720" (18.30mm)
  • Contact Shape: Rectangular
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 378
