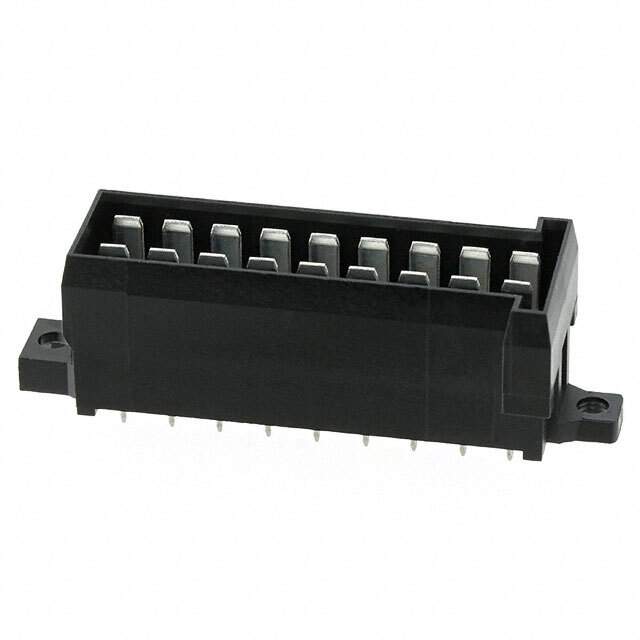

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Plug
Contact Type Tab
Pitch - Mating 0.197"
Number of Positions 18
Number of Rows 2
Row Spacing - Mating 0.217" (5.51mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Mounting Style Through Hole
Termination Solder
Contact Length - Mating 0.366" (9.30mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.720" (18.30mm)
Contact Shape Rectangular
Contact Finish - Mating Silver
Contact Material Copper Zinc
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide, Mounting Flange
Insulation Color Black
Manufacturer Pack Quantity 315
MSL Level 1 (Unlimited)
Win Source Part Number 1134298-963357-2
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 963357-2 CAD Model

Description

The 963357-2 is an 18-position plug connector manufactured by TE Connectivity AMP Connectors.

  • Applications: Board to cable/wire
  • Pitch Mating: 0.197"
  • Mounting Style: Through-hole
  • Packaging: Bulk
  • Material: Polybutylene terephthalate (PBT), glass-filled insulation
  • Contact Finish: Silver
  • Supply: Limited
