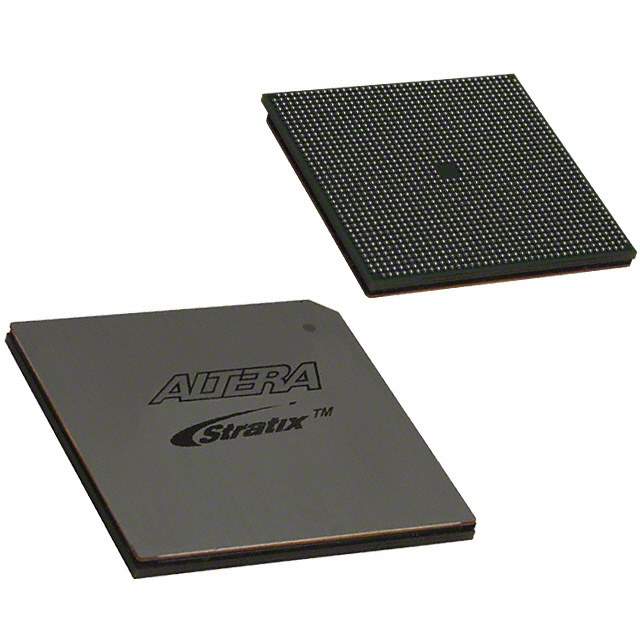

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intel
Status Obsolete
Number of LABs/CLBs 5712
Number of Logic Elements/Cells 57120
Total RAM Bits 5215104
The number of I/O 1022
Supply Voltage (V) 1.425V ~ 1.575V
Mounting Style SMD
Temperature Range - Operating 0°C ~ 85°C
Manufacturer Package 1508-BBGA, FCBGA
Supplier Device Package 1508-FBGA (30x30)
Family Part Number EP1S60
Manufacturer Pack Quantity 21
MSL Level 3 (168 Hours)
Win Source Part Number 738092-EP1S60F1508C7
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EP1S60F1508C7 CAD Model

Description

The Intel EP1S60F1508C7 is an obsolete integrated circuit with a mounting style of SMD.

  • LABs/CLBs: 5712
  • Logic Elements/Cells: 57120
  • Total RAM: 5215104 bits
  • Popularity: Low
  • Supply and Demand Status: Limited
  • I/O: 1022
  • Supply Voltage Range: 1.425V to 1.575V
  • Manufacturer Package: 1508-BBGA, FCBGA
  • Manufacturer Pack Quantity: 21
  • MSL Level: 3 (168 hours)
