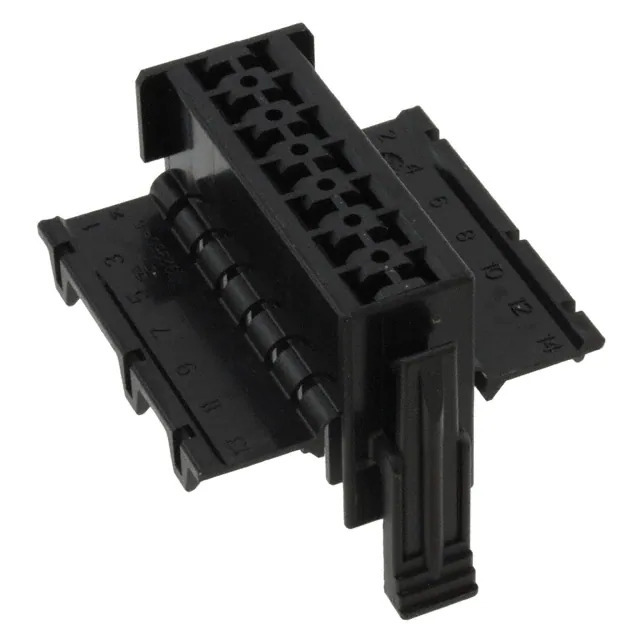

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Junior Power Timer
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 14
Pitch 0.197" (5.00mm)
Number of Rows 2
Row Spacing 0.220" (5.60mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Black
Features -
Note Contacts Not Included
Base Product Number 929504
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365805-929504-5
Ultra Librarian 3D Model Ultra Librarian 929504-5 CAD Model

Description

The Junior Power Timer is a rectangular connector housing from TE Connectivity AMP Connectors.

  • Connector Type: Housing
  • Number of Positions: 14
  • Number of Rows: 2
  • Mounting Type: Free Hanging (In-Line)
  • Pitch: 0.197" (5.00mm)
  • Row Spacing: 0.220" (5.60mm)
  • Color: Black
  • Connector Style: Receptacle
  • Contact Type: Female Socket
  • Contacts Included: No
  • Product Status: Active
  • Operating Temperature: -30°C ~ 100°C
