The STM32F103T6U6A is a high-performance, ARM Cortex-M3 based microcontroller from STMicroelectronics. This microcontroller is part of the STM32F103x6 series, which is well-suited for a variety of applications due to its remarkable blend of processing power, reduced power consumption, and peripheral set.
Key Features
- Core: ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency.
- Memory: Comes with 32 Kbytes of Flash memory and 6 Kbytes of SRAM, providing ample space for complex applications.
- Debugging: Integrated debug mode supported via Serial Wire Debug (SWD) and JTAG interfaces.
- Communication: Boasts a rich set of peripherals including I2C, SPI, and USART interfaces for versatile communication options.
- Timers: Multiple timers, including a PWM timer for accurate control over motor operations or LED dimming.
- Analog: Features 2x 12-bit, 1 µs A/D converters, making it ideal for analog sensor integration.
- GPIO: Up to 37 GPIOs available, providing flexibility for interfacing with a wide range of external components.
- Power Efficiency: Supports multiple power-saving modes, including Stop and Standby modes, which enable energy-efficient operation.

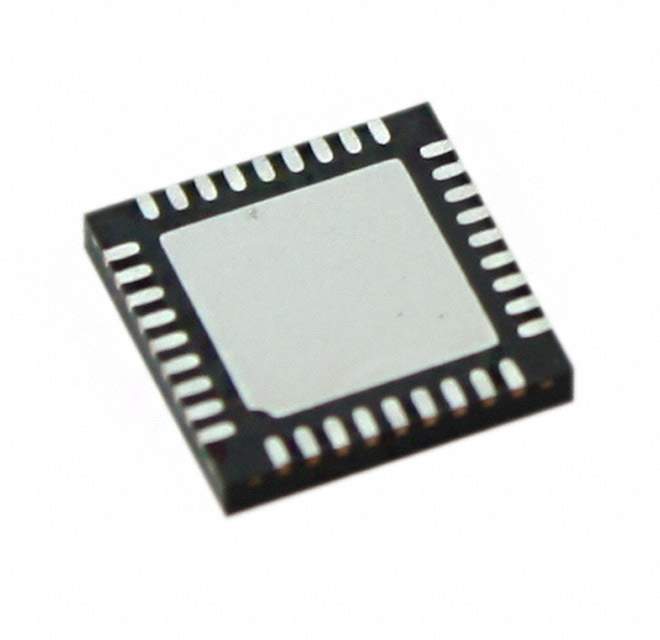

- Package: Available in a 36-pin UFQFPN package that is suitable for space-constrained applications.
Applications
The STM32F103T6U6A microcontroller is highly versatile and can be used in a range of applications, such as:
- Industrial control systems
- Medical equipment
- Embedded systems
- Consumer electronics
- Automotive applications
- Internet of Things (IoT) devices
With its robust set of features and capabilities, the STM32F103T6U6A is an excellent choice for designers looking to develop advanced and power-efficient applications across diverse market segments.
