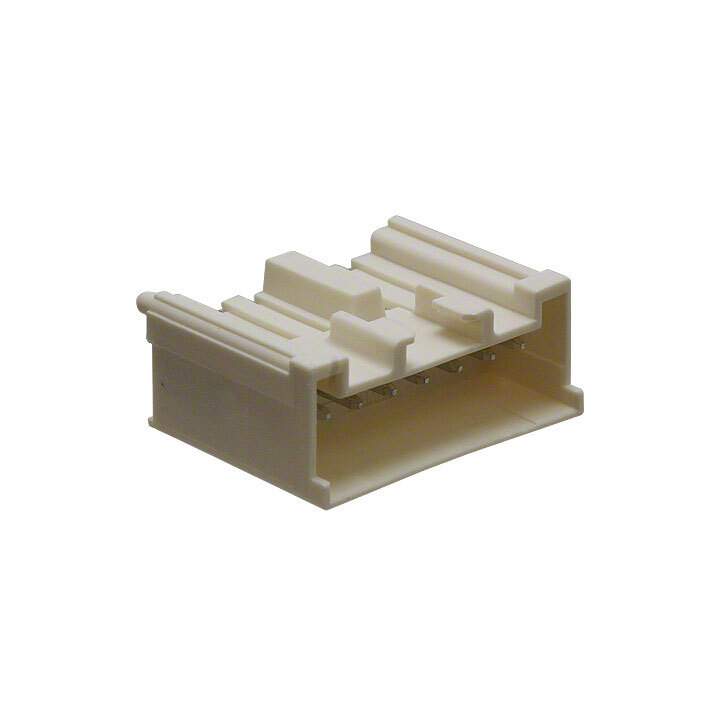

Same model may have multiple batches, images only for reference.

917727-1

Name: 917727-1
Brand: TE Connectivity
SKU: 1006690
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	917727-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 7POS 2.5MM / Connector Header Through Hole 7 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	Signal Double Lock
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	7
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.185" (4.70mm)
Contact Length - Post	0.126" (3.20mm)
Overall Contact Length	0.626" (15.90mm)
Insulation Height	0.602" (15.29mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Features	Board Guide
Temperature Range - Operating	-30°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	50V
Mated Stacking Heights	19.2mm
Applications	General Purpose
Base Product Number	917727
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	917727-1-ND,-917727-1-CSI,2266-917727-1,9177271,A106946
Standard Package	150
Win Source Part Number	1006690-917727-1
Ultra Librarian 3D Model	Ultra Librarian 917727-1 CAD Model

Description

The 917727-1 is a rectangular connector header manufactured by TE Connectivity AMP Connectors. It is a board-to-cable/wire connector with a pitch-mating of 0.098" (2.50mm) and a current rating of 3A.

Pitch-Mating: 0.098" (2.50mm)
Current Rating: 3A
Voltage Rating: 50V
Temperature Range: -30°C to 105°C
Package: 150
