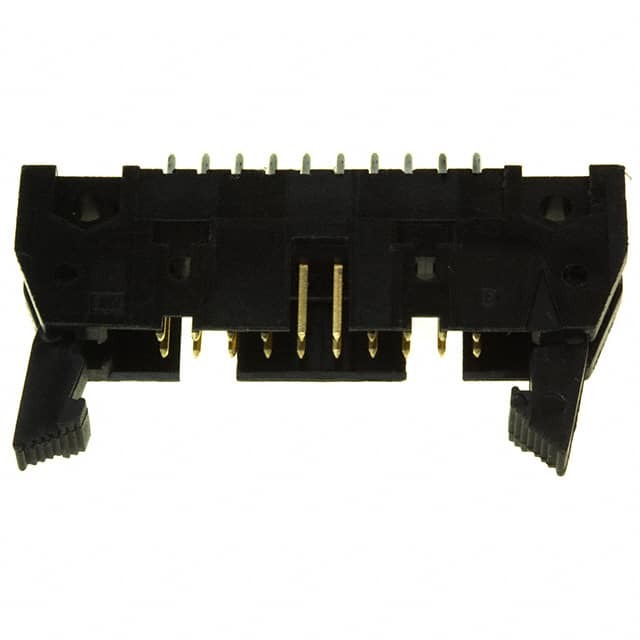

Same model may have multiple batches, images only for reference.
5499910-4
Same model may have multiple batches, images only for reference.

5499910-4

Part No 5499910-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMP-Latch
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length 0.639" (16.23mm)
Insulation Height 0.549" (13.94mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 5499910
Standard Package 48 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856524-5499910-4
Ultra Librarian 3D Model Ultra Librarian 5499910-4 CAD Model

Description

The TE Connectivity electronic component with the part number 856524-5499910-4 is an active product.

  • Category: Connectors and Interconnects, Rectangular Connectors - Headers, Male Pins
  • Series: AMP-Latch
  • Positions: 20
  • Features: Keying Slot and Mounting Flange
  • Connector Type: Header with Male Pins
  • Positions Loaded: All
  • Rows: 2
  • Termination Method: Solder
  • Fastening: Latch Lock/Eject Hooks
  • Package: Bulk
  • Standard Package Quantity: 48 pieces
  • ECCN: EAR99
  • MSL Level: 1
  • Current Rating: 1A
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8536.69.4040
  • Manufacturer: TE Connectivity
  • Base Product Number: 5499910
