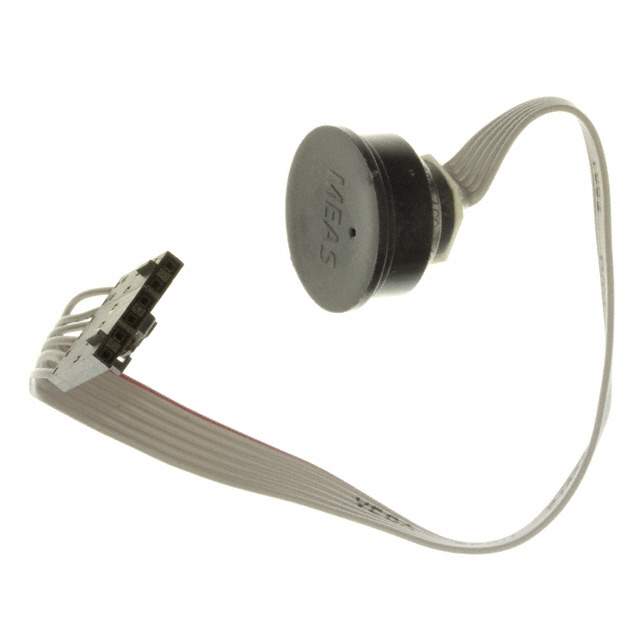

86-015G-C Real Image
Same model may have multiple batches, images only for reference.

86-015G-C

Part No 86-015G-C
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR PRESSURE 15PSIG STEEL / Pressure Sensor 15PSI (103.42kPa) Vented Gauge 0 mV ~ 100 mV Cylinder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr TE Connectivity Measurement Specialties
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.1%
Port Style No Port
Features Temperature Compensated
Termination Style Cable with Connector
Maximum Pressure 45PSI (310.26kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case Cylinder
Base Product Number 86-015
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 9026.20.4000
Other Names MSP6860,2266-86-015G-C,86015GC,MSP6860-NDR
Standard Package 1
Win Source Part Number 1039533-86-015G-C
Ultra Librarian 3D Model Ultra Librarian 86-015G-C CAD Model

Description

The TE Connectivity Measurement Specialties 1039533-86-015G-C is a pressure sensor that belongs to the category of sensors and transducers.

  • Termination Style: Cable and Connector
  • Feature: Temperature Compensated
  • Mounting: Board Mount
  • Pressure Type: Vented Gauge
  • Max Operating Pressure: 45PSI (310.26kPa)
  • Operating Temperature: -40℃ to 125℃
