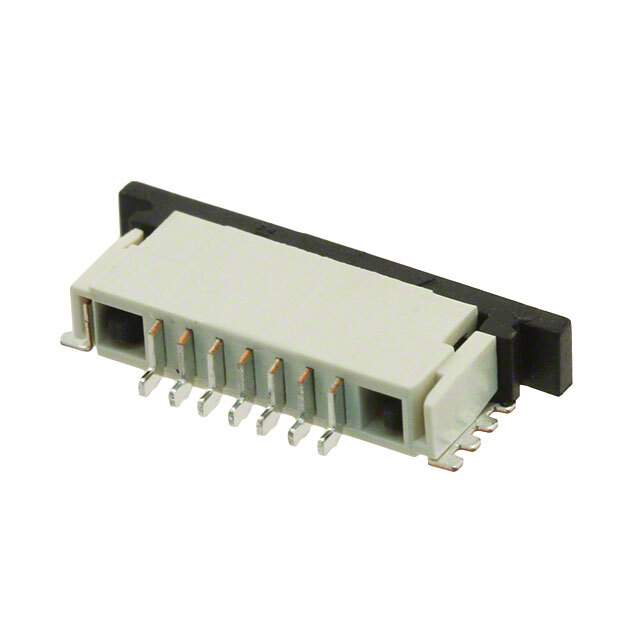

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr TE Connectivity AMP Connectors
Package Tape & Reel
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 7
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.101" (2.56mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 200V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness 78.7µin (2.00µm)
Housing Color Natural
Actuator Color Black
Base Product Number 84952
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-84952-7TR,-84952-7-SI,84952-7-ND,A101388DKR,A101388CT,849527,A101388TR
Standard Package 1,500
Win Source Part Number 1158714-84952-7
Ultra Librarian 3D Model Ultra Librarian 84952-7 CAD Model

Description

TE Connectivity AMP Connectors' 1158714-84952-7 is a FFC, FPC (Flat Flexible) Connector with a pitch of 0.039" (1.00mm) and 7 positions.

  • Pitch: 0.039" (1.00mm)
  • Positions: 7
  • Features: Solder retention, zero insertion force (ZIF), and a slide lock
  • Connector/Contact Type: Contacts, bottom
  • Cable End Type: Straight
  • Housing Material: Liquid crystal polymer (LCP), glass filled
  • Actuator Material: Polyamide (PA), nylon, glass filled
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Natural
  • Current Rating: 1A
  • Temperature Range: -40°C ~ 85°C
  • Package: Tape & reel
  • Standard Package: 1,500
