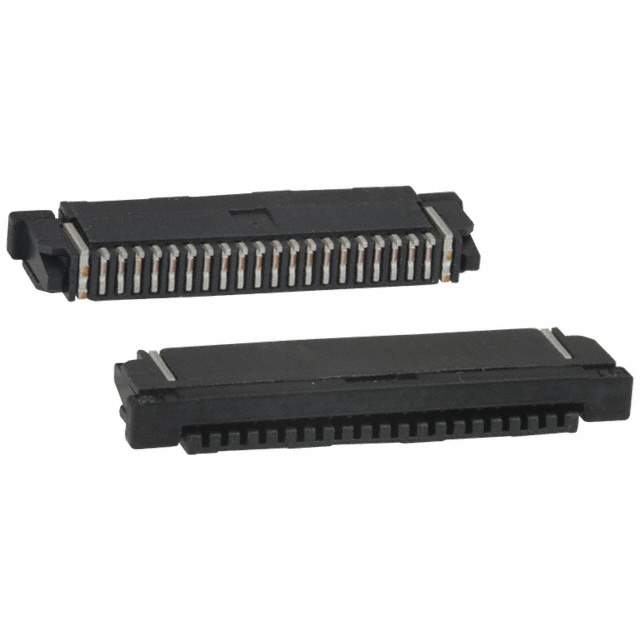

SFR20R-1STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFR20R-1STE1LF

Part No SFR20R-1STE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 20POS 0.80MM R/A / 20 Position FFC, FPC Connector Contacts, Bottom 0.031" (0.80mm) Surface Mount, Right Angle
Datasheet
SFR20R-1STE1LF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFR
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 20
Pitch 0.031" (0.80mm)
Termination Solder
FFC, FCB Thickness 0.30mm, 0.33mm
Height Above Board 0.098" (2.50mm)
Locking Feature Slide Lock
Cable End Type Straight or Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Zero Insertion Force (ZIF)
Material Flammability Rating UL94 V-0
Housing Color Black
Actuator Color Black
Base Product Number SFR20R
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-1178-2,SFR20R1STE1LF,609-1178-1
Standard Package 2,000
Win Source Part Number 1158475-SFR20R-1STE1LF
Ultra Librarian 3D Model Ultra Librarian SFR20R-1STE1LF CAD Model

Description

The AMPHENOL SFR20R-1STE1LF is a 20-position, 0.80mm pitch, zero insertion force (ZIF) flat flexible connector that belongs to the FFC, FPC (Flat Flexible) Connectors category.

  • Positions: 20
  • Pitch: 0.80mm
  • Termination: Solder
  • Contact Finish: Tin
  • Package: Tape & Reel (TR) / Cut Tape (CT)
  • Standard Package: 2,000
  • Contact Material: Phosphor Bronze
  • Height Above Board: 0.098" (2.50mm)
  • Connector/Contact Type: Contacts, Bottom
  • FFC, FCB Thickness: 0.30mm, 0.33mm
  • Locking Feature: Slide Lock
  • Cable End Type: Straight or Tapered
  • Housing Material: Polyphenylene Sulfide (PPS), Glass Filled
  • Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled
  • Flammability Rating: UL94 V-0
  • Housing Color: Black
  • Actuator Color: Black
  • HTSUS Code: 8536.69.4051
  • Base Product Number: SFR
  • Obsolete: Yes
