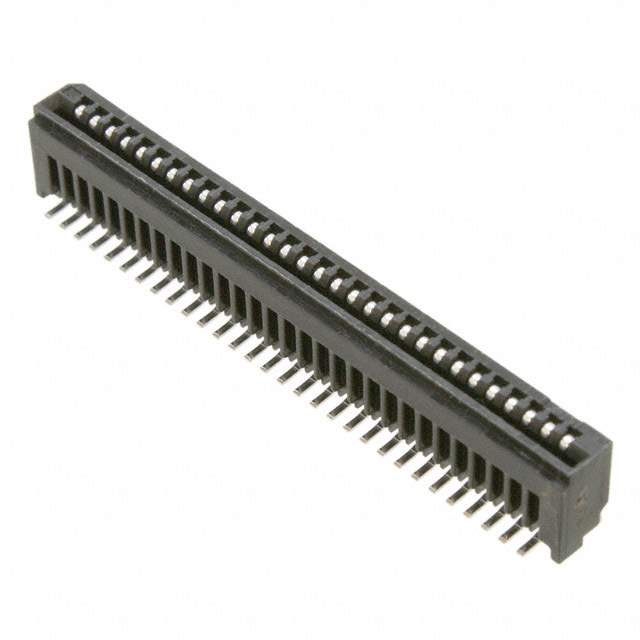

30FMN-BMT-A-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

30FMN-BMT-A-TF(LF)(SN)

Part No 30FMN-BMT-A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 30POS 1.00MM SMD / 30 Position FFC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr JST Sales America Inc.
Series FMN
Package Tape & Reel
Flat Flex Type FFC
Mounting SMD (SMT)
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 30
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.201" (5.10mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Features Low Insertion Force (LIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Base Product Number 30FMN-BM
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 455-1957-1,30FMNBMTATFLFSN,455-1957-6,455-1957-2
Standard Package 1,000
Win Source Part Number 1159220-30FMN-BMT-A-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 30FMN-BMT-A-TF(LF)(SN) CAD Model

Description

The 30FMN-BMT-A-TF(LF)(SN) is a 30 position FFC, FPC (Flat Flexible) connector manufactured by JST Sales America Inc.

  • Position Count: 30
  • Pitch: 0.039” (1.00mm)
  • Insertion Force: Low (LIF)
  • Current Rating: 0.5A
  • Voltage Rating: 50V
  • Mounting: Surface Mount
  • Package Quantity: 1,000
