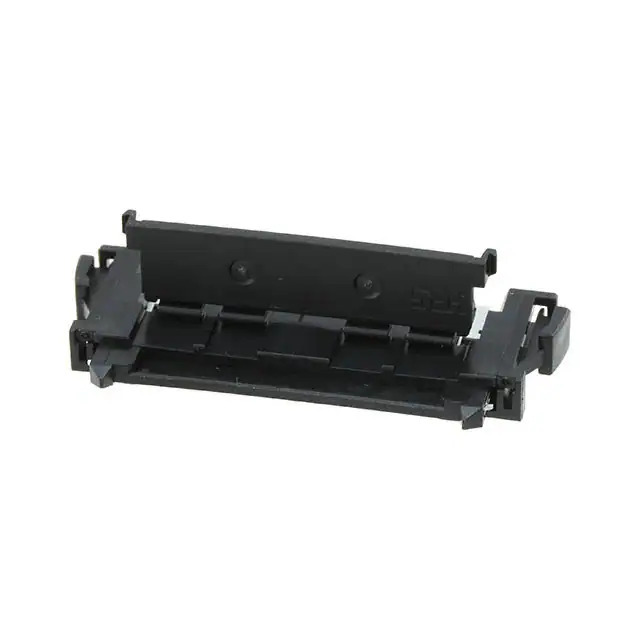

Same model may have multiple batches, images only for reference.
FX16M2-41P-HC Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX16M2-41P-HC

Part No FX16M2-41P-HC
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC PLUG 41POS 0.5MM / 41 Position FFC Connector Plug 0.020" (0.50mm) Free Hanging (In-Line)
Datasheet
FX16M2-41P-HC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FX16
Package Tray
Product Status Active
Flat Flex Type FFC
Mounting Type Free Hanging (In-Line)
Connector/Contact Type Plug
Number of Positions 41
Pitch 0.020" (0.50mm)
Termination -
FFC, FCB Thickness -
Height Above Board -
Locking Feature -
Cable End Type -
Contact Material Phosphor Bronze
Contact Finish -
Housing Material Polybutylene Terephthalate (PBT)
Actuator Material -
Features EMI Shielded
Voltage Rating -
Material Flammability Rating UL94 V-0
Current Rating (Amps) -
Contact Finish Thickness -
Housing Color Black
Actuator Color -
Mating Cycles -
Base Product Number FX16
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1362690-FX16M2-41P-HC
Ultra Librarian 3D Model Ultra Librarian FX16M2-41P-HC CAD Model

Description

The FX16M2-41P-HC is a FFC/FPC connector assembly from the FX16 series manufactured by Hirose Electric Co Ltd.

  • Connector Type: FFC/FPC (Flat Flexible)
  • Shielding: EMI Shielded
  • Mounting Type: Free Hanging (In-Line)
  • Pitch: 0.020" (0.50mm)
  • Number of Positions: 41
  • Contact Material: Phosphor Bronze
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Housing Color: Black
