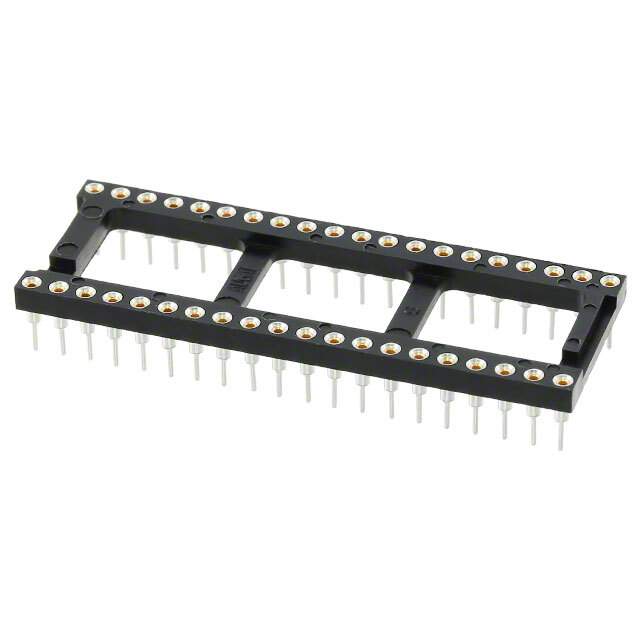

840-AG11D-ESL-LF Real Image
Same model may have multiple batches, images only for reference.

840-AG11D-ESL-LF

Part No 840-AG11D-ESL-LF
Manufacturer TE Connectivity
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 40POS GOLD
Datasheet
840-AG11D-ESL-LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series 800
Packaging Tube
Type DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) 40 (2 x 20)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Material - Mating Beryllium Copper
Mounting Style Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Gold
Contact Finish Thickness - Post Flash
Contact Material - Post Copper
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature Range -55°C ~ 105°C
Termination Post Length 0.125" (3.18mm)
Material Flammability Rating UL94 V-0
Contact Resistance 10 mOhm
Win Source Part Number 766318-840-AG11D-ESL-LF
Popularity Medium
Supply and Demand Status Balance
Family Name 800
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Switzerland
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 840-AG11D-ESL-LF CAD Model

Description

The TE Connectivity AMP Connectors 766318-840-AG11D-ESL-LF is a medium popularity electronic component from TE Connectivity AMP Connectors.

  • Type: 40-pin DIP
  • Row Spacing: 0.6-inch
  • Mounting Style: Through-Hole
  • Operating Temperature Range: -55°C to 105°C
  • Features: Open Frame
  • Housing Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
  • Material Flammability Rating: UL94 V-0
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness: Flash
  • Contact Material-Mating: Beryllium Copper
  • Packaging: Tube
