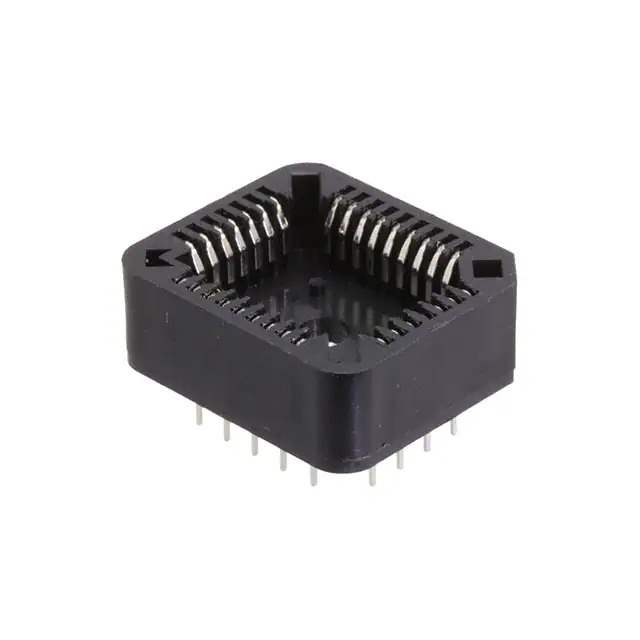

PLCC-32-AT Real Image
Same model may have multiple batches, images only for reference.

PLCC-32-AT

Part No PLCC-32-AT
Manufacturer Adam Technologies, Inc.
Catalog Sockets for ICs, Transistors
Description PLCC 32P THROUGH HOLE / 32 (2 x 7, 2 x 9) Pos PLCC Socket Tin Through Hole
Datasheet
PLCC-32-AT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Sockets for ICs, Transistors - IC Sockets
Mfr Adam Technologies, Inc.
Series PLCC
Package Tube
Product Status Active
Type PLCC
Number of Positions or Pins (Grid) 32 (2 x 7, 2 x 9)
Pitch - Mating 0.050" (1.27mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Material - Mating Phosphor Bronze
Mounting Type Through Hole
Features Closed Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 80.0µin (2.03µm)
Contact Material - Post Phosphor Bronze
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Termination Post Length 0.126" (3.20mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 30mOhm
Base Product Number PLCC
Standard Package 29 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 930696-PLCC-32-AT
Ultra Librarian 3D Model Ultra Librarian PLCC-32-AT CAD Model

Description

The PLCC-32-AT is a high-quality socket for ICs and transistors, and is part of the PLCC series, manufactured by an unknown manufacturer.

  • Series: PLCC
  • Design: Closed Frame
  • Termination: Solder
  • Housing Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Standard Package: 29 pcs
  • Positions/Pins: 32
  • Grid: 2 x 7, 2 x 9
  • Mating Pitch: 0.050" (1.27mm)
  • Contact Finish: Tin
  • Contact Material: Phosphor Bronze
  • Mounting: Through Hole
  • Temperature Range: -55°C to 105°C
