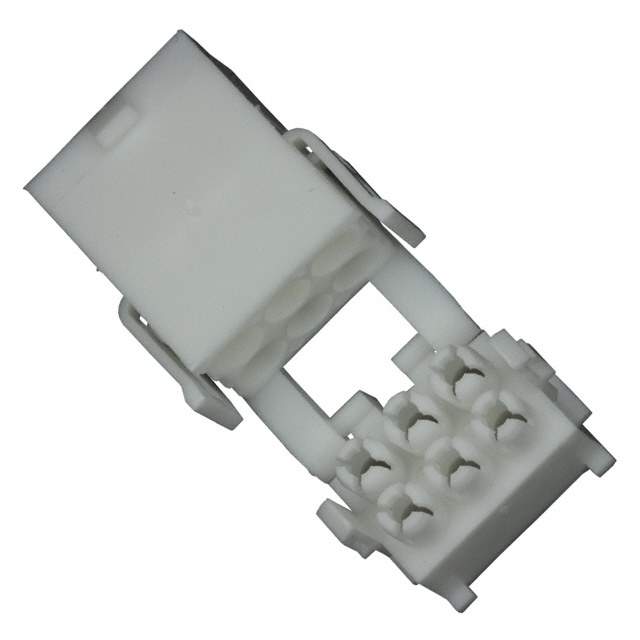

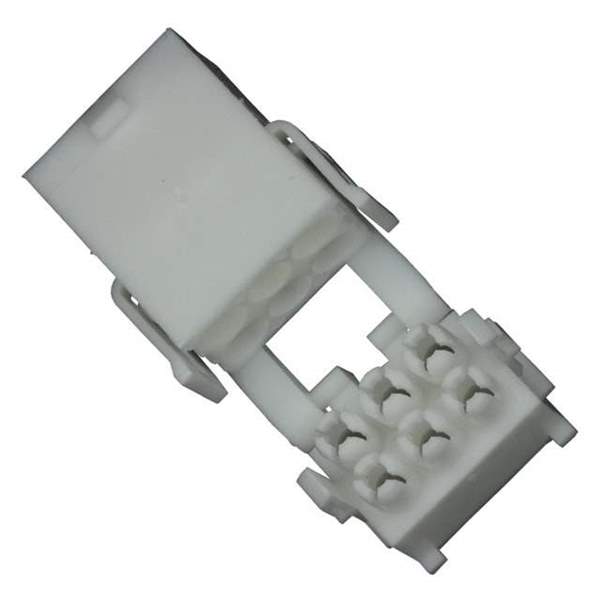

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Receptacle
Contact Type Male or Female
Number of Positions 6
Pitch 0.163" (4.14mm)
Number of Rows 2
Row Spacing 0.163" (4.14mm)
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Note Contacts Not Included
Base Product Number 794191
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number 2266-794191-1,-794191-1-SI,7941911,A25661
Standard Package 500
Win Source Part Number 1334329-794191-1
Ultra Librarian 3D Model Ultra Librarian 794191-1 CAD Model

Description

The 1334329-794191-1 is a rectangular connector housing manufactured by TE Connectivity AMP Connectors.

  • Applications: Automotive and Industrial Equipment
  • Positions: 6
  • Pitch: 4.14mm
  • Features: Locking Ramp
  • Color: Natural
  • RoHS Compliant: Yes
  • Package: Bulk Package of 500
