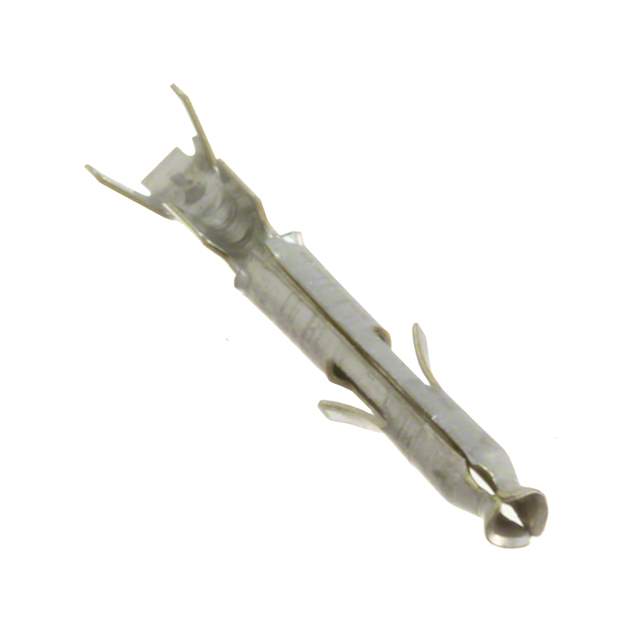

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Contacts>Multi Purpose
Mfr TE Connectivity
Series Mini-Universal MATE-N-LOK
Package Tape & Reel
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 770902
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 7,000 pcs
Win Source Part Number 1381177-770902-3
Ultra Librarian 3D Model Ultra Librarian 770902-3 CAD Model

Description

The 1381177-770902-3 is a multi-purpose contact from TE Connectivity's Mini-Universal MATE-N-LOK series.

  • Series: Mini-Universal MATE-N-LOK
  • Contact Type: Stamped Contact
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Packaging: Tape and Reel
  • Wire Gauge: 22 to 26 AWG
  • Termination Type: Crimp
  • Contact Material: Brass
  • Contact Gender: Socket
  • Standard Package Quantity: 7,000 pieces
  • REACH Status: REACH affected
  • HTSUS Code: 8536.90.4000
  • Base Product Number: 770902
  • RoHS Compliant: No
  • Moisture Sensitivity Level (MSL): 1 (unlimited exposure time)
