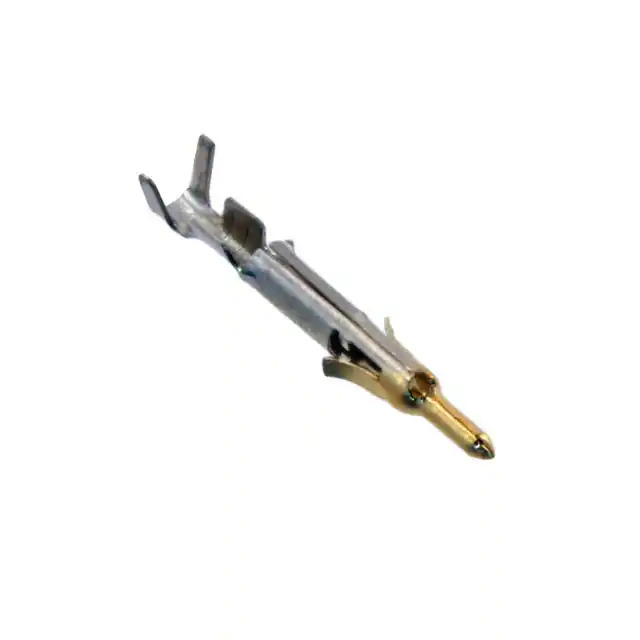

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Tape & Reel (TR)
Product Status Active
Type Stamped
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 770901
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1377616-770901-3
Ultra Librarian 3D Model Ultra Librarian 770901-3 CAD Model

Description

The Mini-Universal MATE-N-LOK Pin is a versatile contact designed for multi-purpose applications, and is manufactured by TE Connectivity AMP Connectors.

  • Type: Stamped
  • Termination: Crimp
  • Wire Gauge: 22 to 26 AWG
  • Contact Finish: Gold
  • Finish Thickness: 30.0µin (0.76µm)
  • Material: Brass
  • Product Status: Active
  • MSL Level: Unlimited
