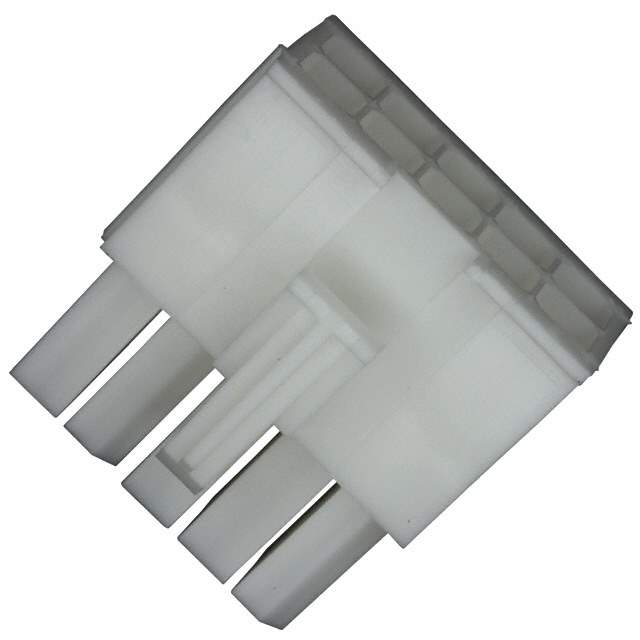

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Plug
Contact Type Male or Female
Number of Positions 10
Pitch 0.163" (4.14mm)
Number of Rows 2
Row Spacing 0.163" (4.14mm)
Mounting Style Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color White
Note Contacts Not Included
Manufacturer Pack Quantity 1,200
MSL Level 1 (Unlimited)
Win Source Part Number 1133671-770580-1
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 770580-1 CAD Model

Description

The TE Connectivity AMP Connectors 1133671-770580-1 is a plug connector that has 10 positions and 2 rows.

  • Supply and Demand: The supply and demand status of this product is balanced.
  • Application: This component is used in industrial applications and comes in a bulk packaging.
  • Pitch: The pitch of this connector is 0.163" (4.14mm)
  • Mounting Style: and it has a free hanging (in-line) mounting style.
  • Color: The color of this connector is white
  • Fastening Type: and it has a latch lock fastening type.
  • Contact Termination: The contact termination is crimp and the contacts are not included.
  • Manufacturer Pack Quantity: The manufacturer pack quantity is 1,200
  • MSL Level: and the MSL level is 1 (unlimited).
