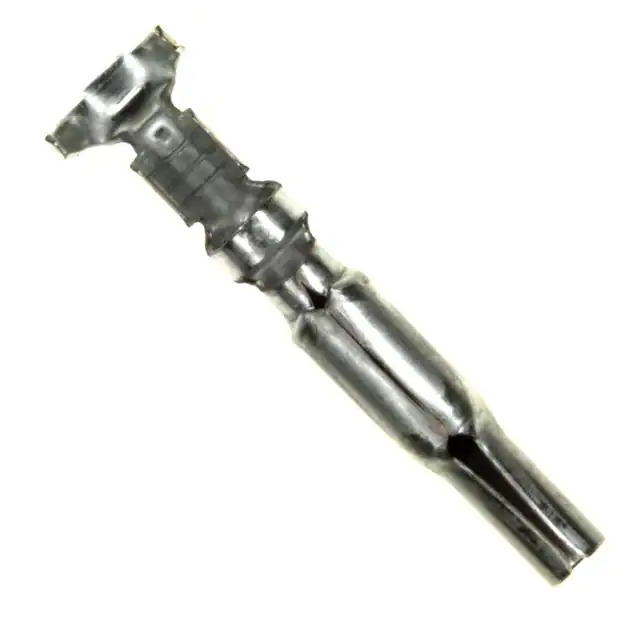

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK II
Package Bulk
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 14-20 AWG
Contact Finish Tin
Contact Finish Thickness -
Base Product Number 770249
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363157-770249-3
Ultra Librarian 3D Model Ultra Librarian 770249-3 CAD Model

Description

The TE Connectivity AMP Connectors Universal MATE-N-LOK II series socket contact is a crimp termination connector suitable for use with 14-20 AWG wire gauge.

  • Win Source Part Number: 1363157-770249-3
  • Termination Type: Crimp
  • Wire Gauge: 14-20 AWG
  • Contact Finish: Tin
  • Contact Finish Thickness: Not specified
  • Product Status: Active
  • Packaging: Bulk
  • Connector Type: Rectangular Connectors
  • Base Product Number: 770249
  • ECCN: EAR99
  • HTSUS Code: 8536.90.4000
